60Hz 12kW 15kVA Diesel Generator with Yanmar 3TNV88-GGE Diesel Engine
Short Description
GENLITEC POWER GYM15D6/GYM15S6 diesel generator sets powered by original YANMAR 3TNV88-GGE, with prime power 12KW/15KVA and standby power 13.2KW/16.5KVA.
- ModelGYM15D6 | GYM15S6
- Frequency60Hz
- Prime Power12KW/15KVA
- Standby Power13.2KW/16.5KVA
- EngineYANMAR 3TNV88-GGE
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)4.29L/H
- MOQ1 Set
Product Details
Product Tags
Introduction
The GENLITEC POWER® GYM15D6 open type and GYM15S6 silent type diesel generator sets provide 12kW/15kVA prime power and 13.2kW/16.5kVA standby power. Powered by a YANMAR 3TNV88-GGE three-cylinder, water-cooled naturally aspirated diesel engine with a mechanical governor, these 15kVA diesel generator sets are designed to provide stable and dependable power for commercial, industrial, construction, agricultural, telecommunications and backup power applications.
Designed for 60Hz operation at 1800RPM, the GYM15D6 and GYM15S6 provide three-phase, four-wire power with rated voltage configurations of 120/208V, 127/220V, 220/380V and 254/440V. The generator set features a 12V DC electric starting system, direct fuel injection, water cooling and a mechanical governor for reliable operation and convenient maintenance.

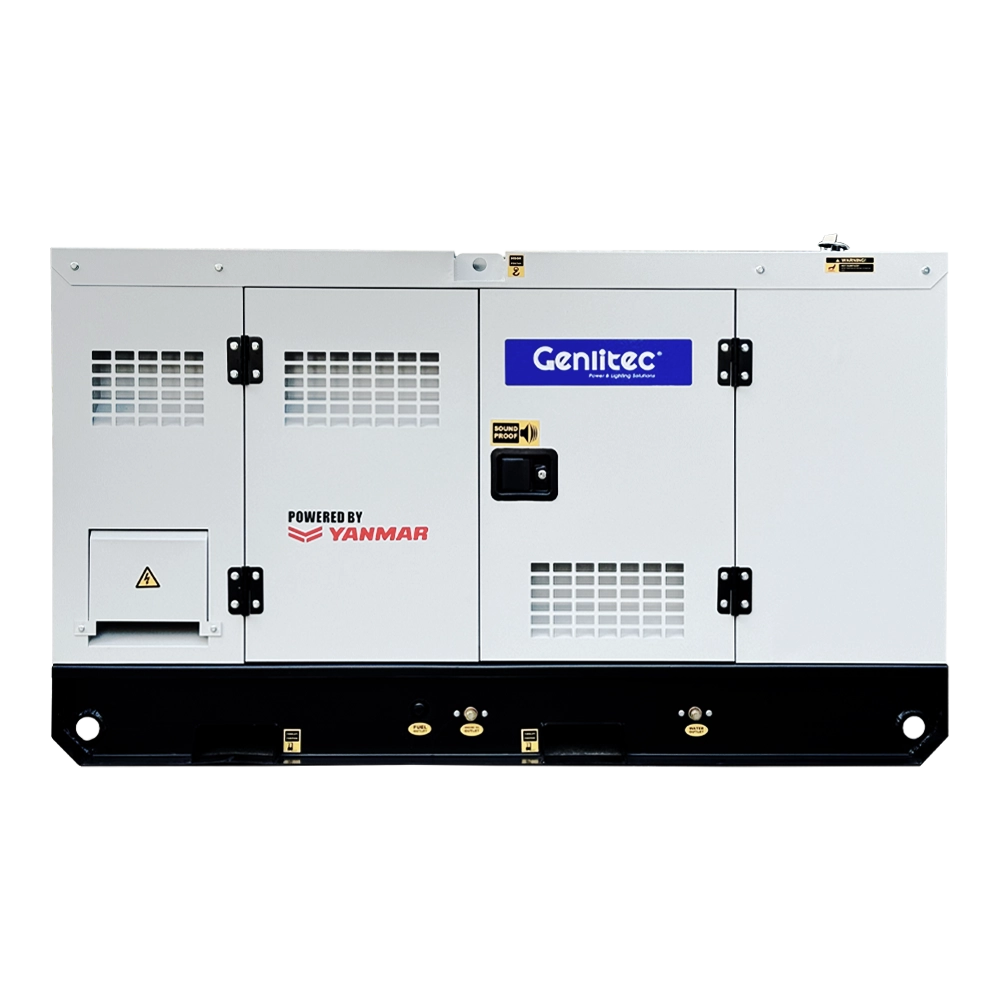

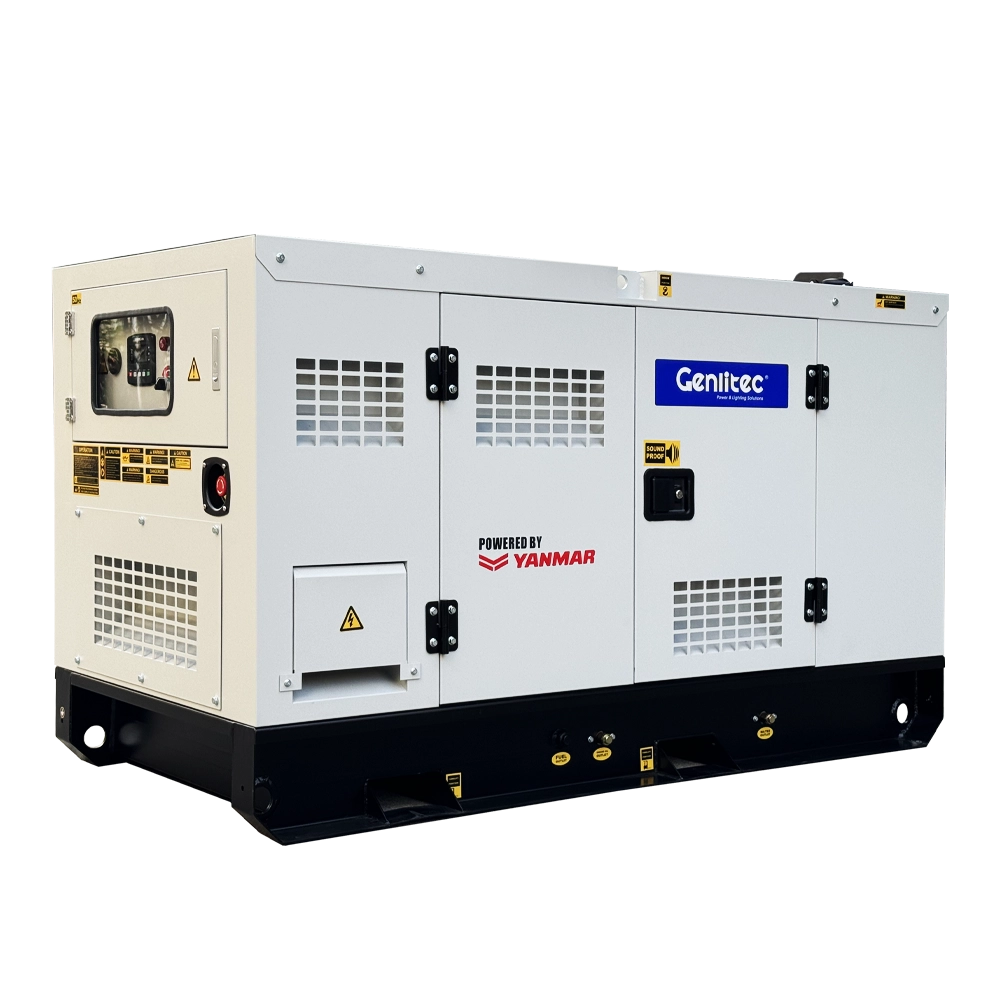

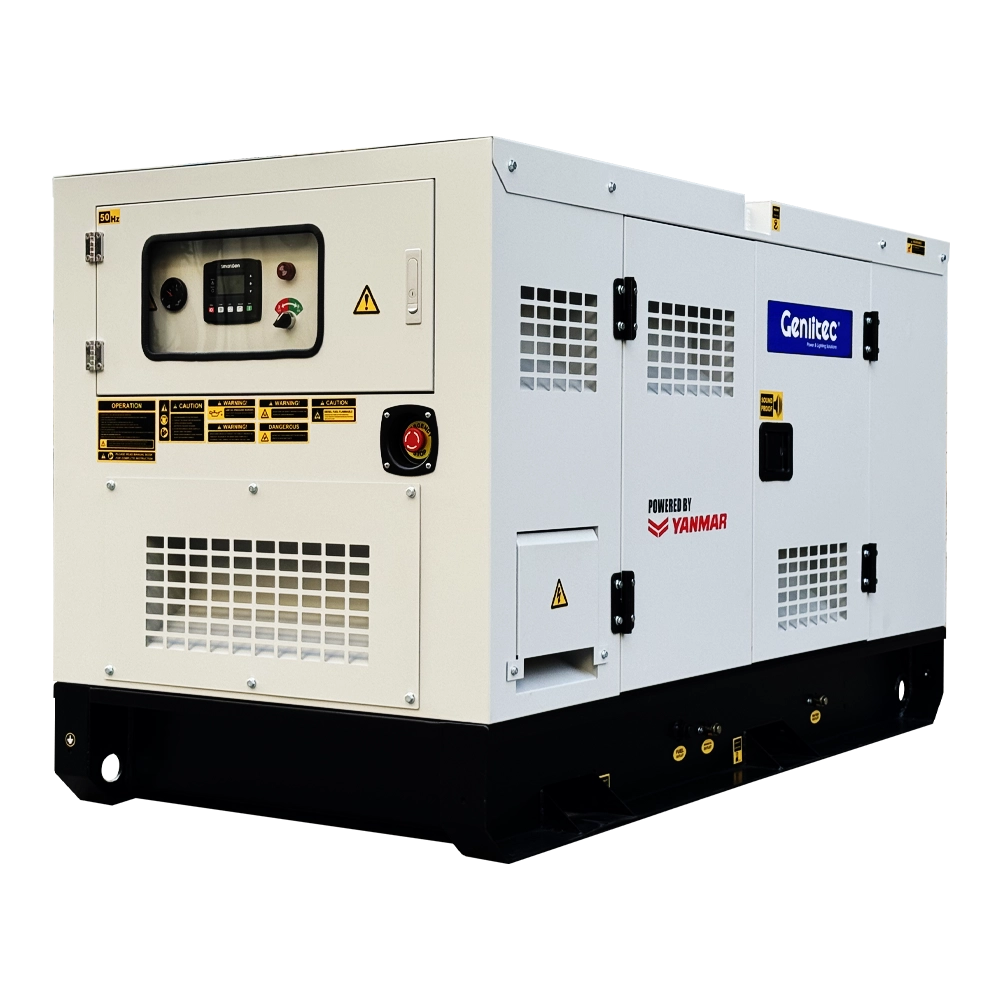

The GYM15D6 open type diesel generator set is suitable for installations where ventilation, service access and maintenance convenience are important. The GYM15S6 silent type diesel generator set is equipped with a weatherproof sound-attenuated enclosure and internal exhaust silencer, making it a practical choice for outdoor and noise-sensitive applications where reliable prime or standby power is required.
Generator Set
| Open Type Model | GYM15D6 |
| Silent Type Model | GYM15S6 |
| Prime Power | 12kW/15kVA |
| Standby Power | 13.2kW/16.5kVA |
| Phase & Wire | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Frequency | 60Hz |
| Rated Voltage | 120/208V; 127/220V; 220/380V; 254/440V |
| Rated Speed | 1800RPM |
| Fuel Tank Capacity | 50L |
Diesel Engine
| Engine Model | YANMAR 3TNV88-GGE |
| Cylinder Number | 3 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Governor Type | Mechanical |
| Bore x Stroke | 88 x 90 mm |
| Compression Ratio | 19:1 |
| Rated Speed | 1800RPM |
| Displacement | 1.642L |
| Rated Power | 14.7kW |
| Standby Power | 16.2kW |
| Fuel System | Direct Injection |
| Oil Capacity | 6.7L |
| Coolant Capacity | 2.0L |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 4.29L/H |
| 75% Prime Load | 3.21L/H |
| 50% Prime Load | 2.15L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 13.5kW/16.9kVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | AVR |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |

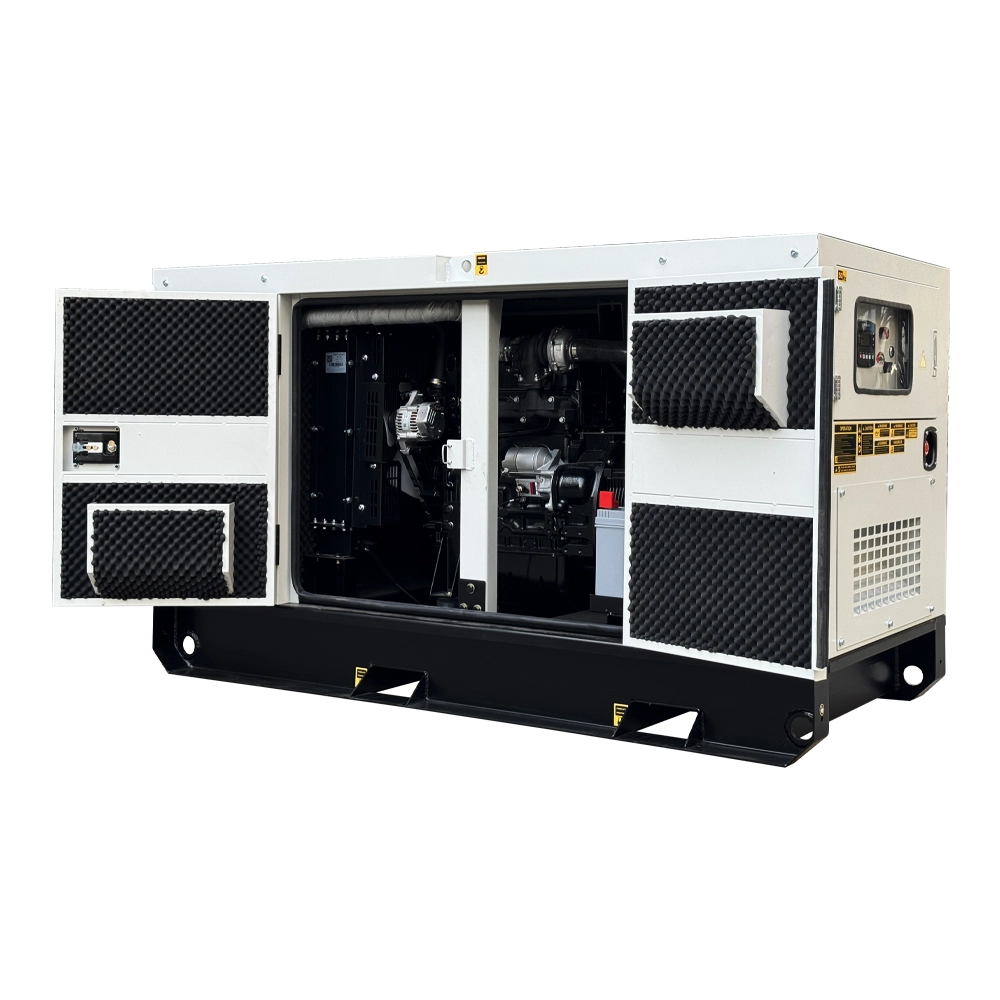

Sound Attenuated Enclosure
○ Weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Corrosion-resistant construction for outdoor installation
○ Available for GYM15S6 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 12kW/15kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power generation solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. With international project experience and a flexible product portfolio, GENLITEC POWER supports customers with equipment selection, customized configurations, quality control, export service and technical support.
○ Diesel generator sets and mobile lighting towers from one supplier
○ Multiple engine, alternator and controller brand options
○ Flexible generator configurations for different applications
○ Professional manufacturing and quality control
○ International export and project experience
○ Technical support and after-sales service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
