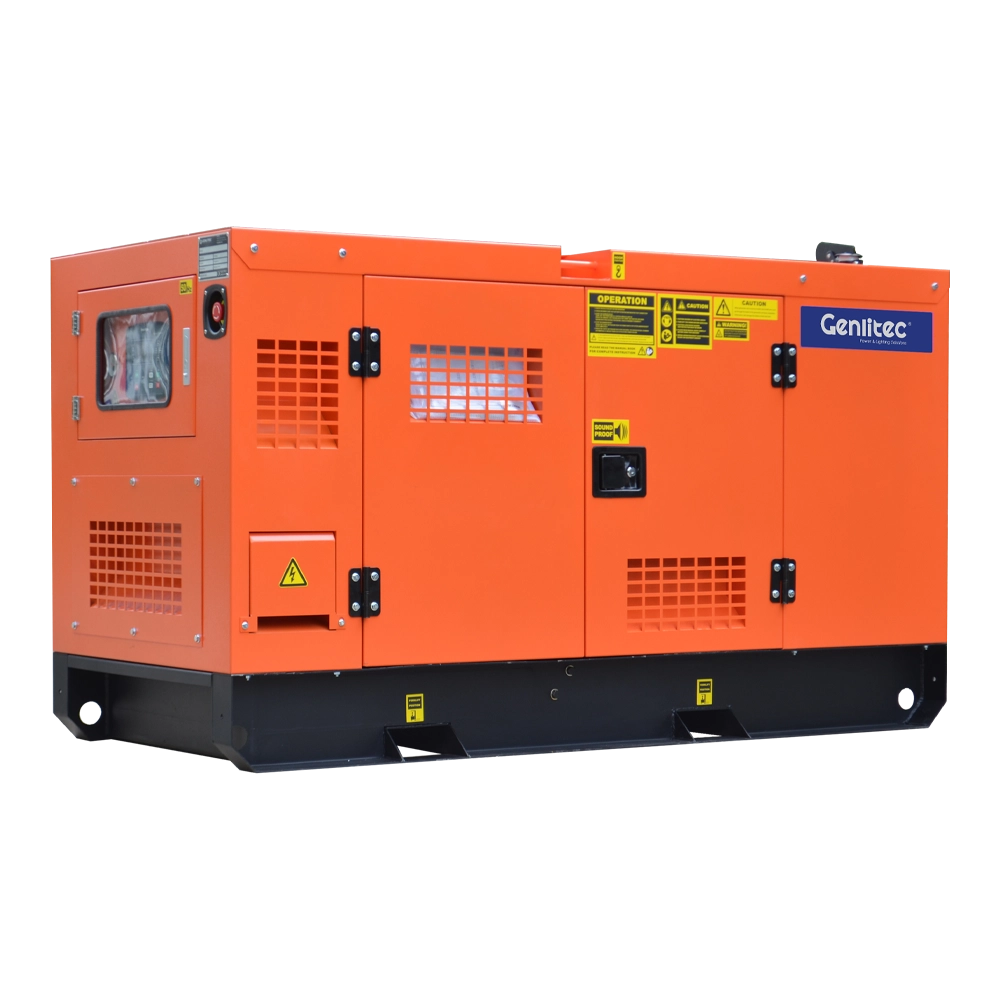

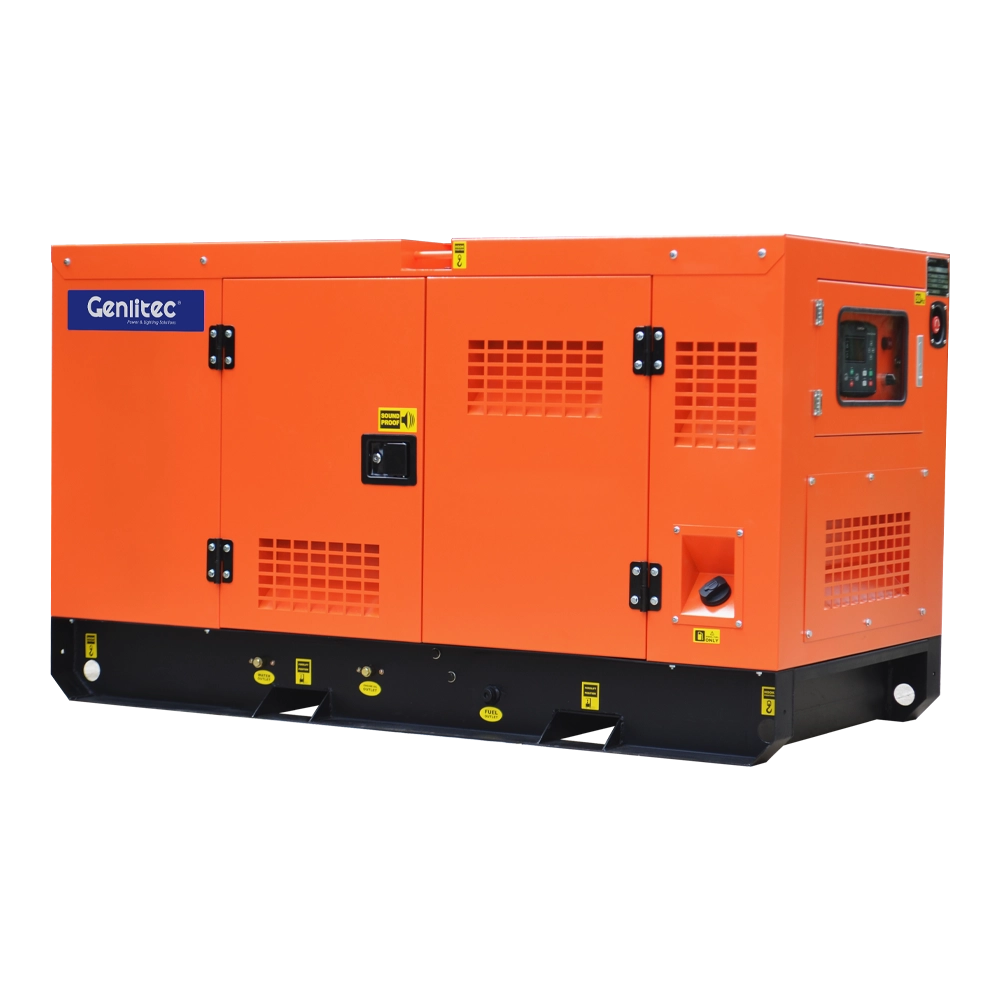

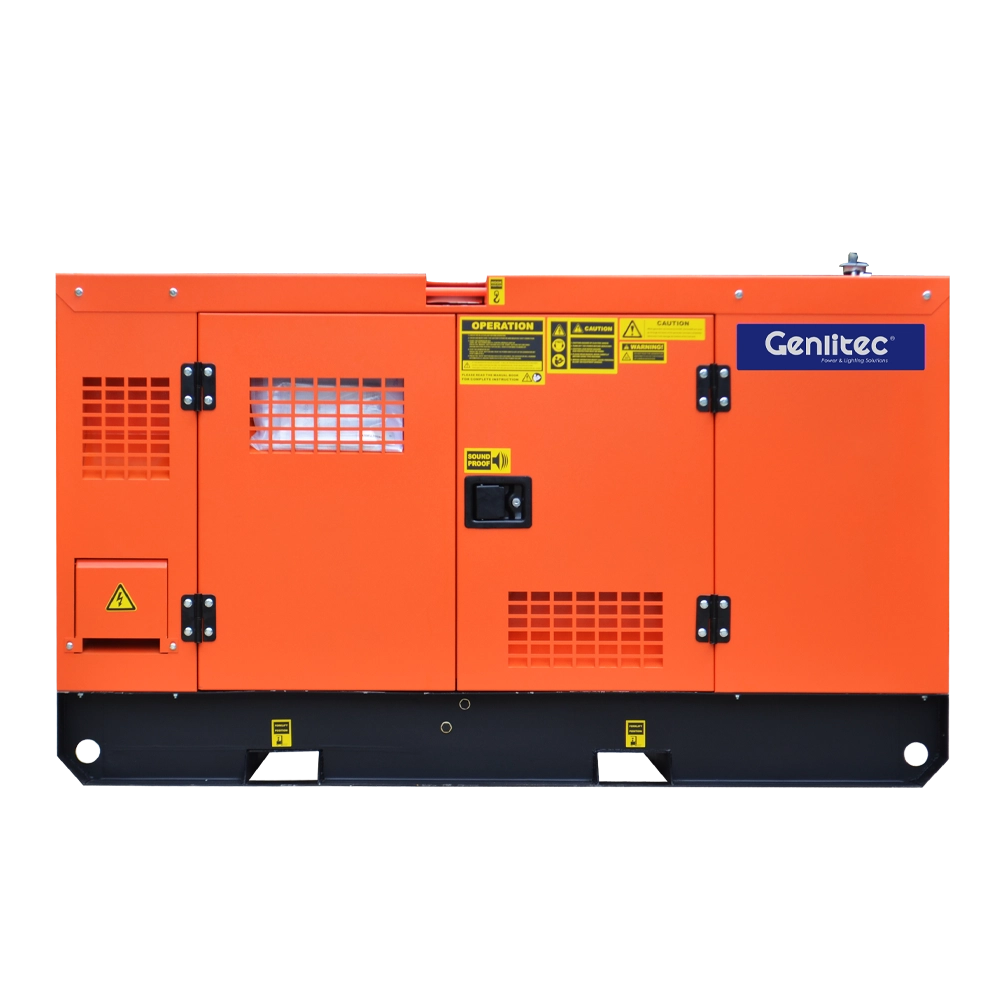

60Hz 12kW 15kVA Diesel Generator with Kubota D1703-E2BG Diesel Engine
Short Description
GENLITEC POWER GPK15D6/GPK15S6 diesel generator set powered by original KUBOTA D1703-E2BG, with prime power 12KW/15KVA, standby power 13.2KW/16.5KVA.
- ModelGPK15D6 | GPK15S6
- Frequency60Hz
- Prime Power12KW/15KVA
- Standby Power13.2KW/16.5KVA
- EngineKubota D1703-E2BG-CHN
- AlternatorStamford/Leroy Somer/Genlitec Power
- Fuel Consumption (100% Load)4.2L/H
- MOQ1 Set
Product Details
Product Tags
Introduction

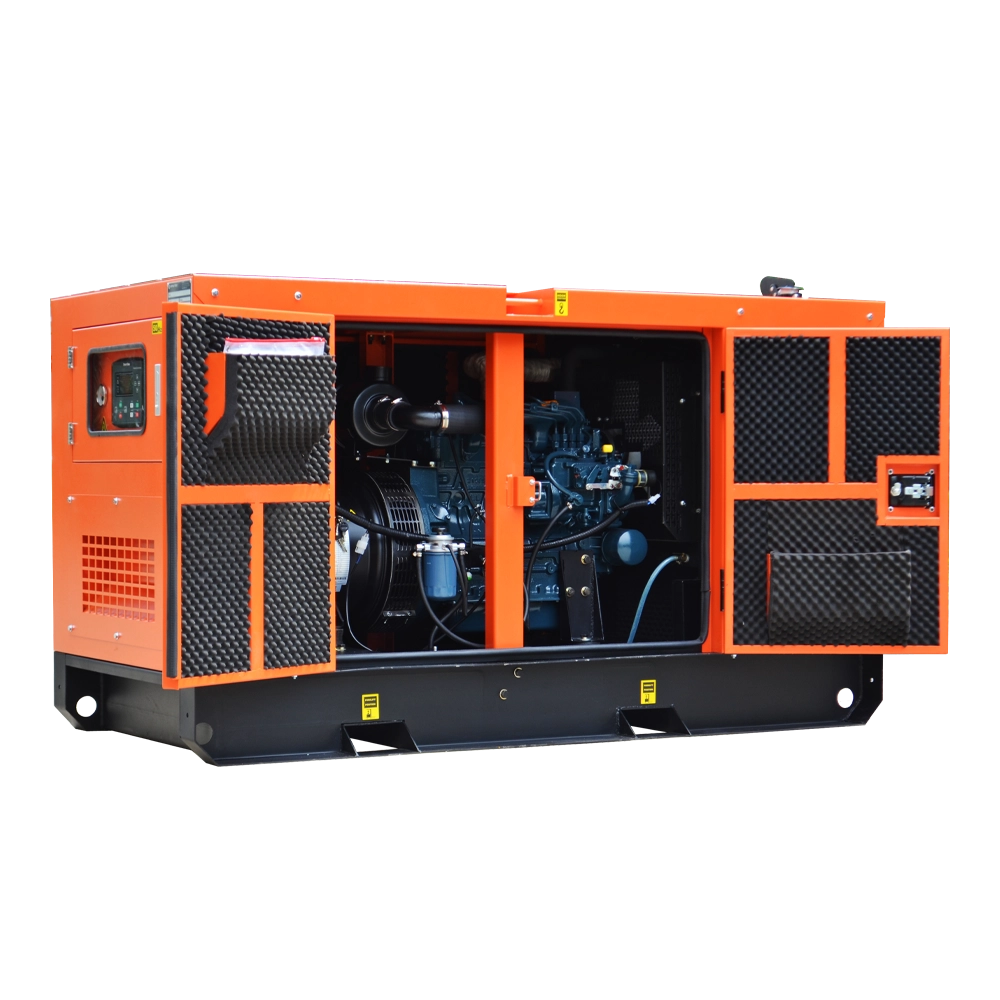

The GENLITEC POWER® GPK15D6 open type and GPK15S6 silent type diesel generator sets deliver 12kW/15kVA prime power and 13.2kW/16.5kVA standby power. Powered by a reliable Kubota D1703-E2BG-CHN water-cooled three-cylinder diesel engine and matched with a high-quality brushless alternator, these generator sets provide stable and dependable power for commercial, industrial, construction, agricultural and standby applications.
Designed for 60Hz operation at 1800RPM, the generator sets provide three-phase, four-wire output with voltage options including 120/208V, 127/220V and 220/230V. The GPK15S6 silent type features a weatherproof sound-attenuated enclosure with internal exhaust silencer, while the GPK15D6 open type provides convenient access for installation, inspection and maintenance. Optional ATS, trailer, extended fuel tank and power sockets are available according to application requirements.
Generator Set
| Open Type Model | GPK15D6 |
| Silent Type Model | GPK15S6 |
| Frequency | 60Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 12KW/15KVA |
| Standby Power | 13.2KW/16.5KVA |
| Rated Voltage | 120/208V, 127/220V, 220/230V |
| Fuel Tank Capacity | 45L |
Diesel Engine
| Engine Model | Kubota D1703-E2BG-CHN |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | E-TVCS |
| Bore x Stroke | 87 x 92.4mm |
| Compression Ratio | 23:1 |
| Rated Speed | 1800 RPM |
| Displacement | 1.647L |
| Rated Power | 15.0KW |
| Standby Power | 18.1KW |
| Fuel Injection Pump | Bosch Type PFR MD Pump |
| Cylinder Number | 3 |
| Oil Capacity | 7.0L |
| Charger Alternator Capacity | 12V-40A |
| Electric Starting System | DC 12V |
Fuel Consumption
| Load | Fuel Consumption |
| 100% Prime Load | 4.2L/H |
| 75% Prime Load | 3.2L/H |
| 50% Prime Load | 2.1L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 13.5KW/16.9KVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Available for GPK15S6 silent type generator set
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 12-hour fuel tank
○ 24-hour fuel tank
○ Power sockets, including CEE or AUS standards
Applications
The GENLITEC POWER 12kW/15kVA diesel generator set is suitable for a variety of prime and standby power requirements, including:
○ Commercial and office buildings
○ Small industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and backup power systems
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power solutions for construction, mining, telecommunications, infrastructure, industrial, commercial and other demanding applications. Founded in 2016, GENLITEC POWER has more than 10 years of industry experience and provides complete power solutions from product selection and system configuration to production, testing, delivery and after-sales support.
○ Founded in 2016 with more than 10 years of industry experience
○ Annual production capacity of more than 2,500 generator sets
○ 66,000 m² manufacturing park with more than 7,000 m² assembly workshop
○ Diesel generator sets covering approximately 9.5kVA to 2500kVA
○ Multiple engine, alternator and controller brand options
○ Customized generator configurations for different applications and markets
○ Products and power solutions supplied to customers in more than 50 countries
○ Professional quality control, testing and technical support
○ International project experience across construction, mining, telecommunications, infrastructure and industrial applications
○ Complete after-sales support and standard warranty service
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
