Short Description:

GENLITEC POWER® GPC100D5 (open type), GPC100S5 (silent type) diesel generating set powered by original CUMMINS diesel engine 6BT5.9-G1/G2, with prime power 80kw/100kva and standby power 88kw/110kva....


  • Model: GPC100D5 | GPC100S5
  • Engine: CUMMINS 6BT5.9-G1/G2
  • Prime Power: 80KW/100KVA
  • Standby Power: 88KW/110KVA
  • Voltage: 220/380V | 230/400V | 240/415V

Product Details

Product Tags


GENLITEC POWER® 80KW/100KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS 6BT5.9-G1/G2 brand water cooled diesel engine

STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 220/380V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

Open Type Model GPC100D5
Silent Type Model GPC100S5
Prime Power 80KW/100KVA
Standby Power 88KW/110KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Frequency 50Hz
Voltage 220/380V; 230/400V; 240/415V


● DIESEL ENGINE


Model CUMMINS 6BT5.9-G1/G2
Cylinder 6 In-Line
Aspiration System Mechanical / Turbocharged
Cooling Method Water Cooled
Governor Type Electronic
Bore x Stroke 102 x 120 mm
Compression Ratio 17.5:1
Rated Speed 1500 RPM
Displacement 5.9 L
Rated Power 86 KW
Fuel System BYC A-Type
Oil Capacity 16.4 L
Coolant Capacity 27 L
Starter Motor Capacity DC 24V-40A


● FUEL CONSUMPTION

100% Prime Load 22 L/H
75% Prime Load 17 L/H
50% Prime Load 11 L/H
25% Prime Load 7 L/H


ALTERNATOR


Number of Phase 3
Rated Power 80KW/100KVA
Frequency 50 Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 12
Insulation Type H Class
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc


CONTROL PANEL


Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer

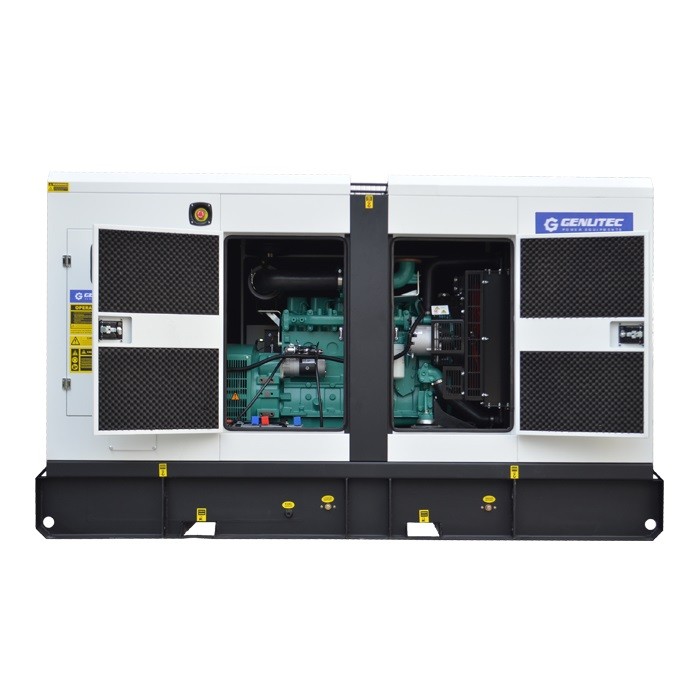

● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE


Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS (for automatic start & stop when electricity power off & on)

Single axle trailer

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)
