60Hz 90kW 113kVA Diesel Generator with Perkins 1104C-44TAG2 Engine
Introduction
The GENLITEC POWER GPP113D6 / GPP113S6 diesel generator set is a reliable and efficient power solution designed for prime, standby and backup power applications.
Powered by a Perkins 1104C-44TAG2 4-cylinder turbocharged diesel engine, the generator set delivers 90kW/113kVA prime power and 100kW/125kVA standby power at 60Hz and 1800RPM, with multiple voltage configurations available for different applications.
Generator Set

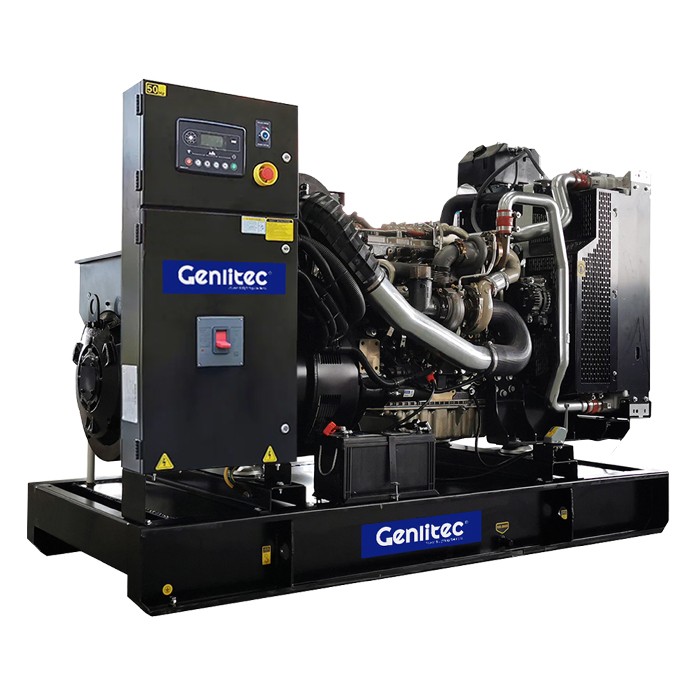

| Open Type Model | GPP113D6 |
| Silent Type Model | GPP113S6 |
| Frequency | 60Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 90kW/113kVA |
| Standby Power | 100kW/125kVA |
| Rated Voltage | 120/208V; 127/220V; 220/380V; 254/440V |
| Rated Speed | 1800 RPM |
| Fuel Tank Capacity | 170L |
Diesel Engine
| Engine Model | Perkins 1104C-44TAG2 |
| Cylinder Number | 4 |
| Cylinder Arrangement | Vertical In-line |
| Engine Type | 4-Cycle Diesel |
| Aspiration System | Turbocharged, Air-to-Air Charge Cooled |
| Cooling Method | Water Cooled |
| Governor Type | Mechanical; Electronic Governor Optional |
| Bore x Stroke | 105 x 127 mm |
| Compression Ratio | 18.2:1 |
| Rated Speed | 1800 RPM |
| Displacement | 4.4L |
| Rated Power | 106.8kW @ 1800RPM |
| Standby Power | 117.5kW @ 1800RPM |
| Fuel System | Rotary Type Pump |
| Oil Capacity | 8.0L |
| Coolant Capacity | 12.6L |
| Electric Starting System | DC 12V |
| Battery Charging Alternator | 65A |
Fuel Consumption
| 100% Prime Load | 26.9L/H |
| 75% Prime Load | 20.2L/H |
| 50% Prime Load | 14.1L/H |
| 25% Prime Load | - |
| 100% Standby Load | 29.7L/H |
Alternator
| Number of Phase | 3 |
| Rated Power | 74kW/92.5kVA |
| Frequency | 60Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temperature Rise | 125K |
| Terminals | 6/12 |
| Insulation Class | H Class |
| Ambient Temperature | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single Bearing |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Control Panel
| ○ Emergency stop button | ○ Main circuit breaker |
| ○ Float battery charger | ○ Manual/Auto start control panel |
| ○ Fuel level meter | ○ Controller power switch |
| ○ Alarm buzzer |
|

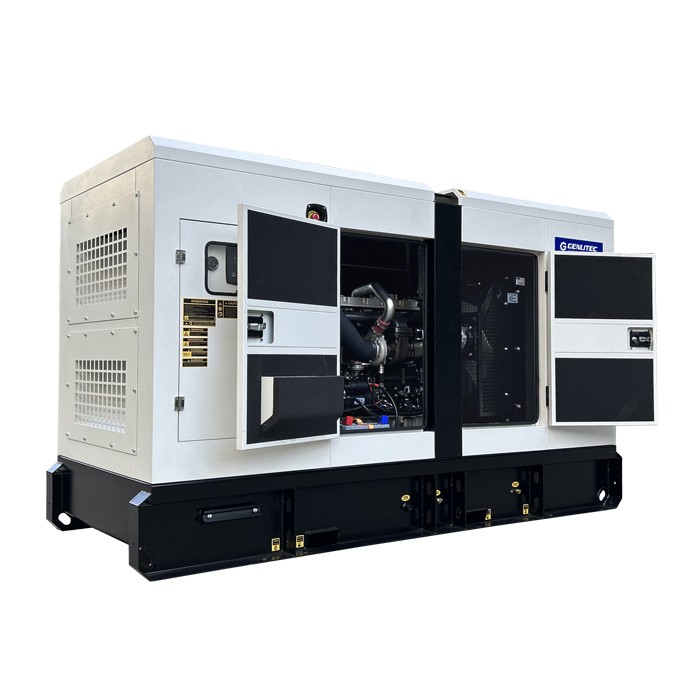

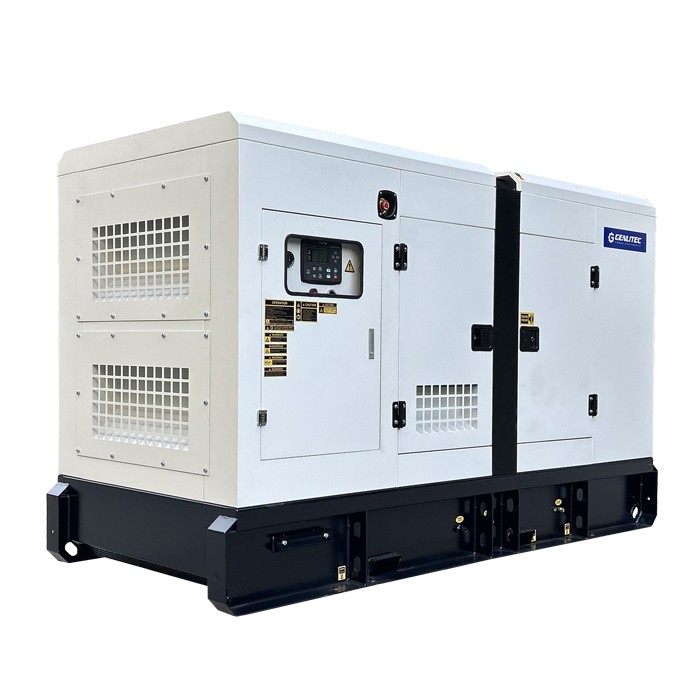

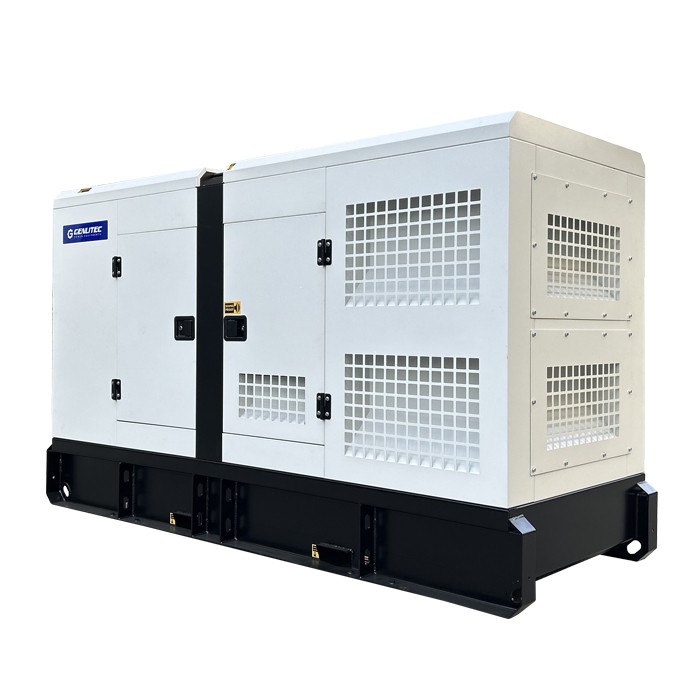

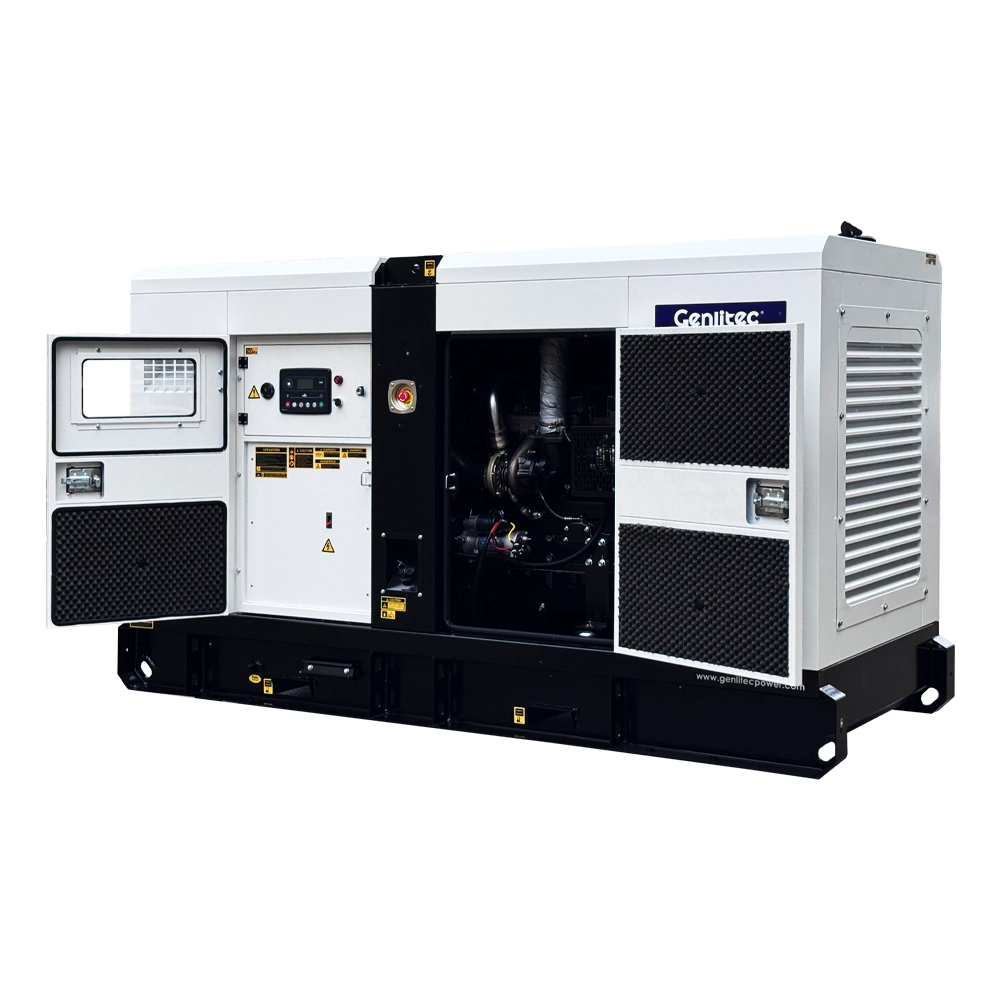

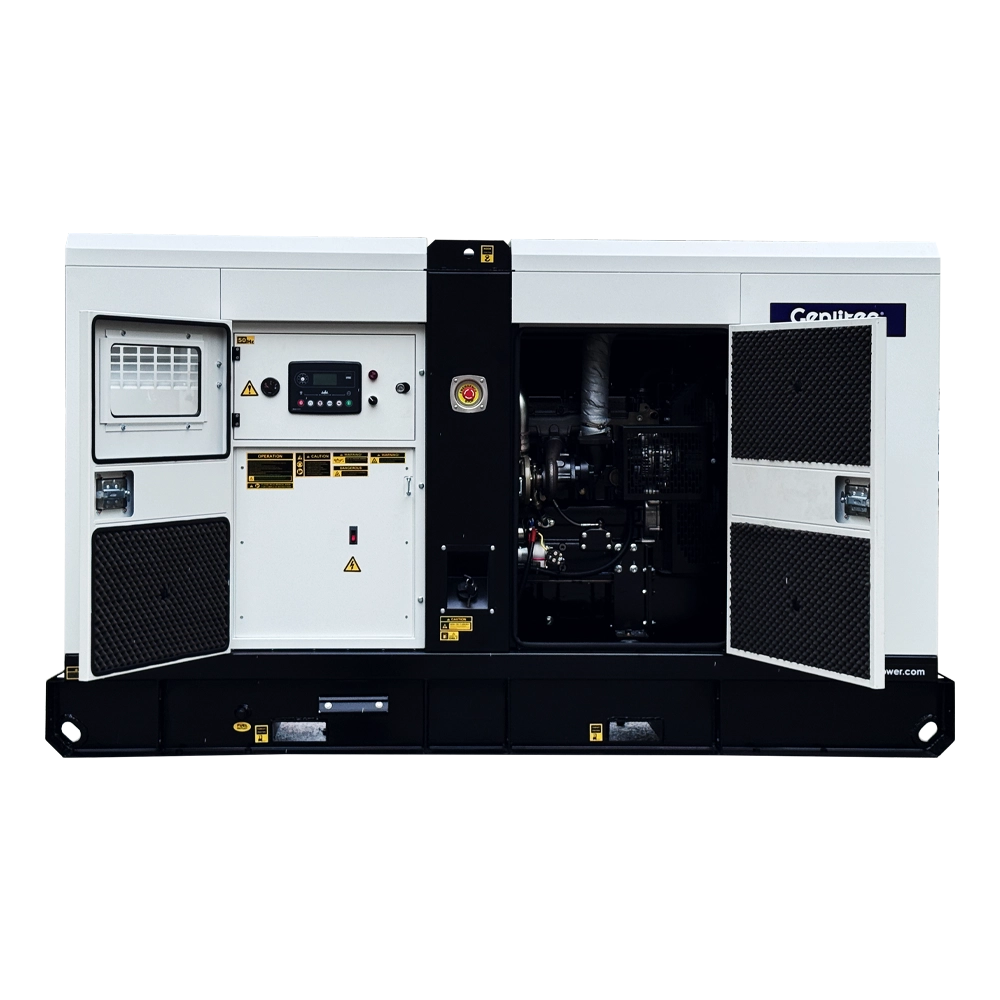

SOUND ATTENUATED ENCLOSURE
The GPP113S6 silent type generator set is equipped with a sound-attenuated enclosure designed to reduce operating noise and provide reliable protection for outdoor applications.
○ Sound-attenuated enclosure for reduced noise levels
○ Weatherproof design for outdoor installation
○ Internal exhaust silencer for effective noise reduction
○ Corrosion-resistant construction for long-term outdoor use
○ Service access doors for convenient maintenance
○ Suitable for commercial, industrial and standby power applications
Options
○ ATS for automatic start and stop when utility power fails or returns
○ Single axle trailer
○ 24-hour fuel tank
○ 48-hour fuel tank
○ Power sockets, including CEE or AUS standards
○ Remote Monitoring System
○ Water-Jacket Heater
○ AREP Excitation System
○ PMG Excitation System
Applications
The GENLITEC POWER 90kW/113kVA diesel generator set is suitable for a wide range of prime, standby and backup power applications, including:
○ Commercial and office buildings
○ Industrial facilities
○ Construction and job sites
○ Agricultural and rural facilities
○ Telecommunication and remote sites
○ Emergency and standby power systems
Why Choose GENLITEC POWER
GENLITEC POWER diesel generator sets are designed to provide dependable power, practical configuration and reliable performance for a wide range of applications.
○ Perkins 1104C-44TAG2 turbocharged diesel engine for reliable and efficient power generation
○ Prime and standby power configurations for different operating requirements
○ Multiple voltage configurations available
○ Open and silent type configurations available
○ Suitable for commercial, industrial and backup power applications
○ Factory-direct supply with customized generator set solutions
For more information, please visit the GENLITEC POWER® Why Choose GENLITEC POWER page.
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
