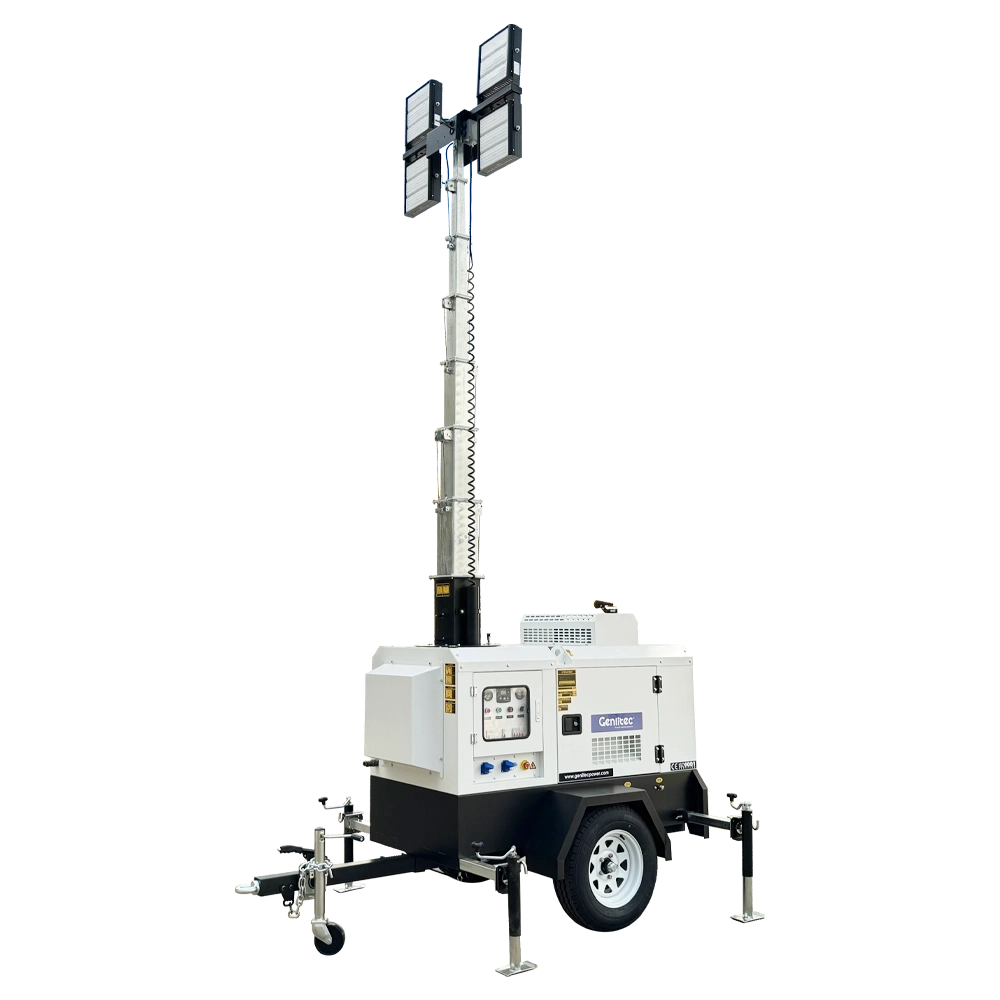

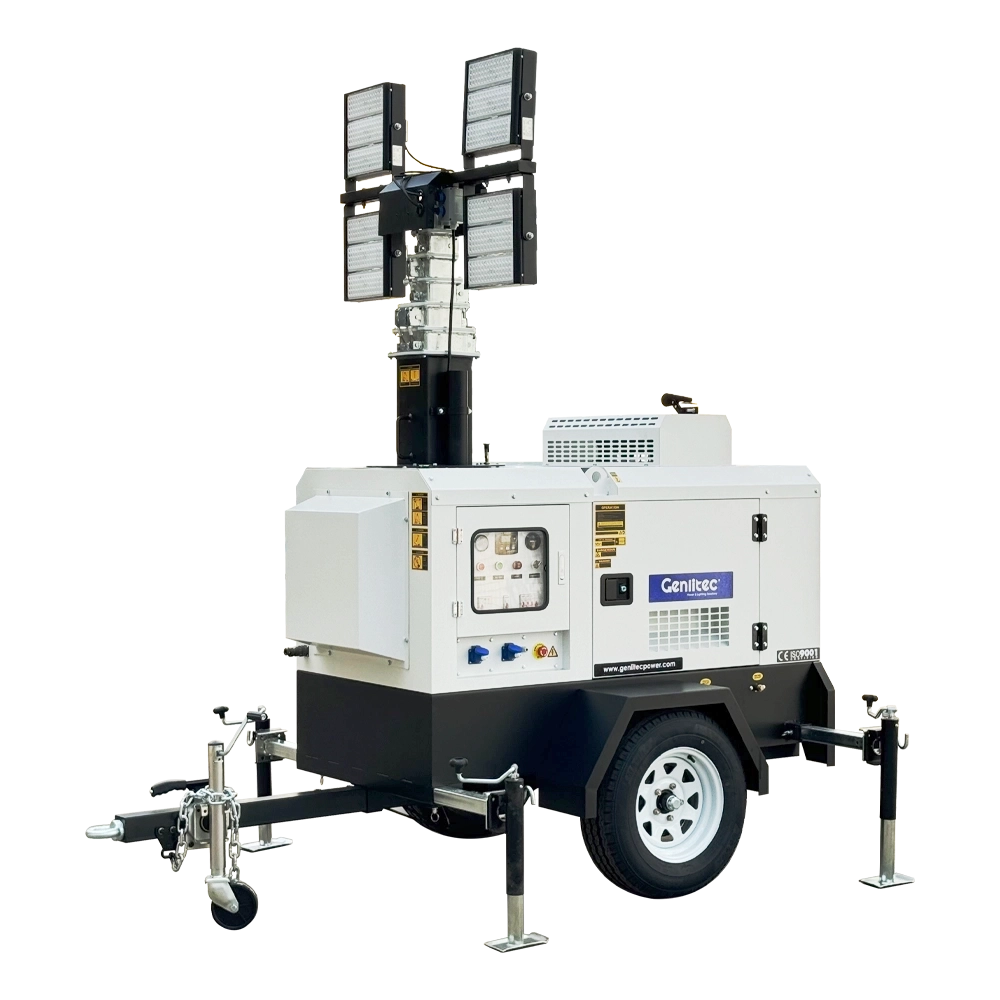

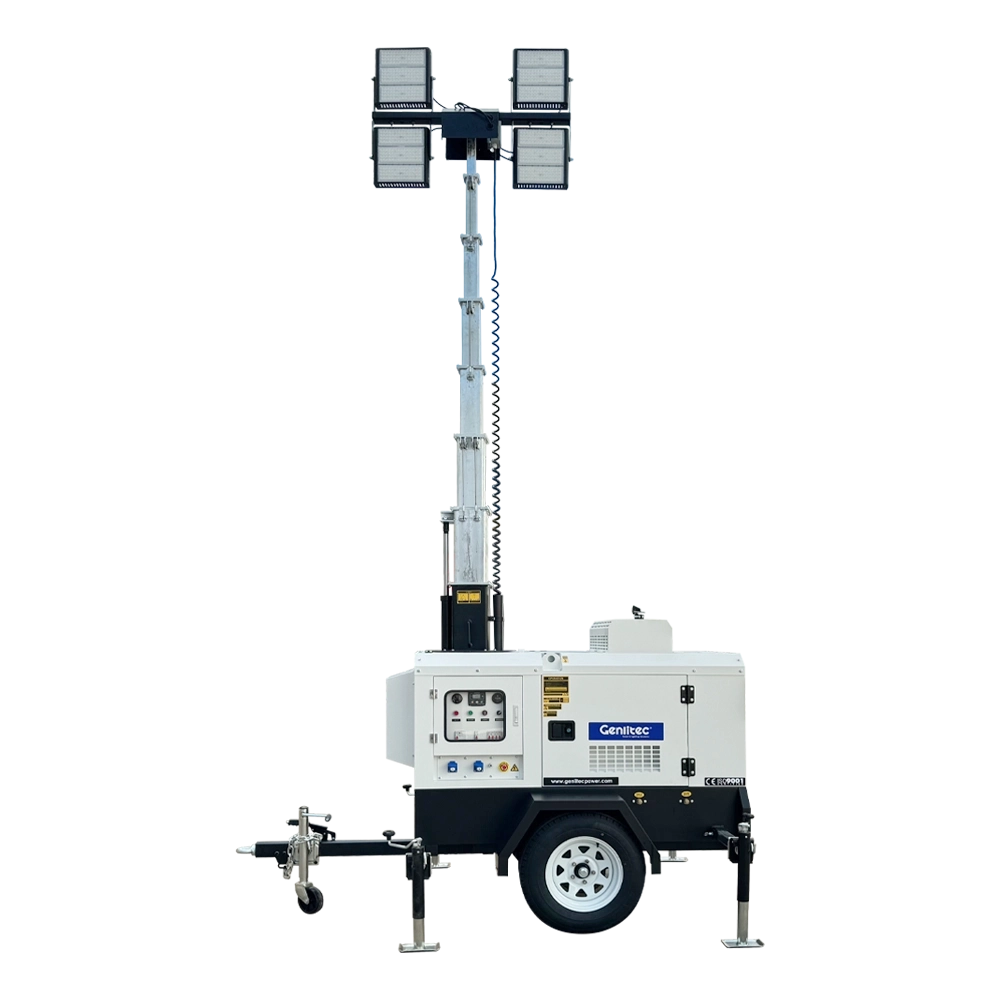

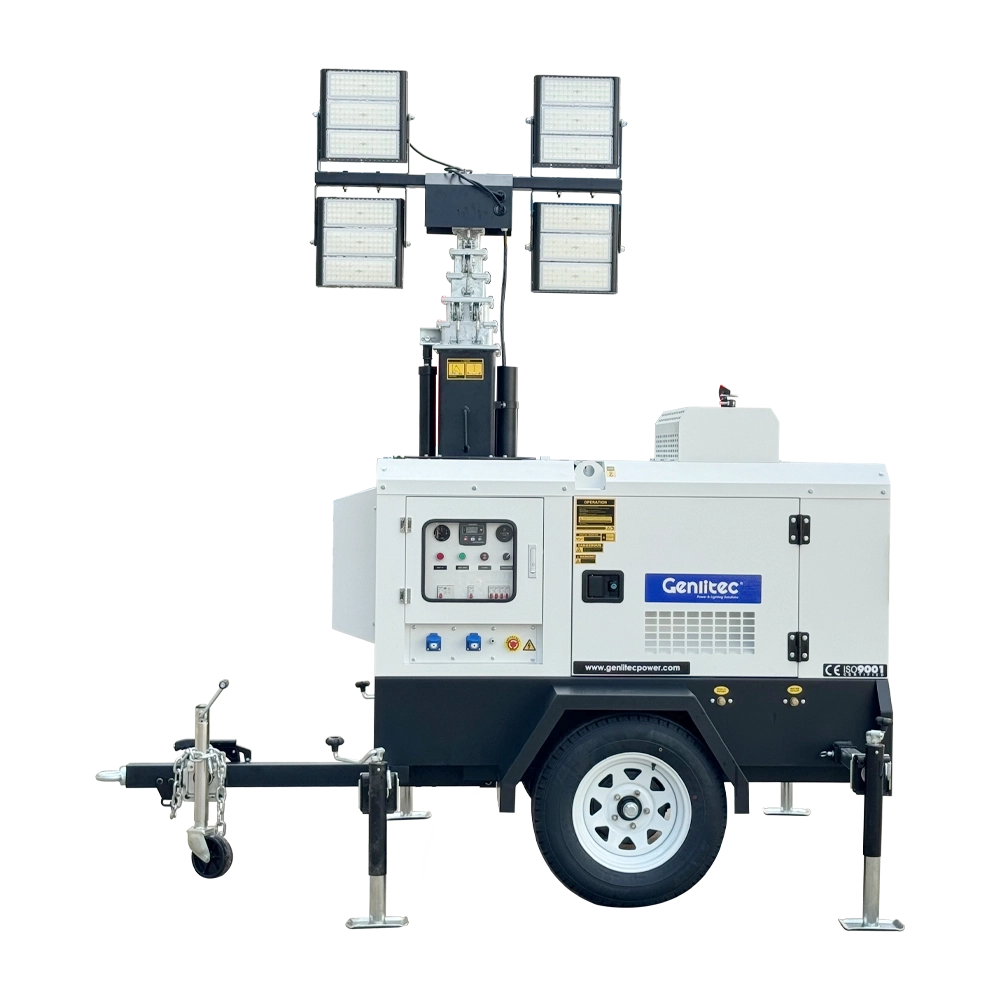

8m Hydraulic 4x400W LED Light Tower with REHLKO KDW1003 Engine
Short Description
8m hydraulic 4x400W LED REHLKO light tower with reliable diesel power, 240,000 lumens and trailer-mounted design for construction, mining and roadwork.
- ModelGLT1600L-8HR
- Lifting System8 Meters Hydraulic
- Power of Lamps4x400W LED
- EngineRehlko KDW1003
- EmissionEU Stage V / EPA Tier 4F
- MOQ1 Set
Product Details
Product Tags
Video
Introduction
The GENLITEC POWER® GLT1600L-8HR is an 8-meter hydraulic diesel generator mobile light tower equipped with four 400W LED floodlights. Powered by a REHLKO KDW1003 three-cylinder water-cooled diesel engine, the light tower provides reliable temporary lighting and auxiliary power for construction sites, mining operations, road and infrastructure projects, outdoor events, oil and gas sites, and emergency lighting applications.
The hydraulic vertical mast extends to a maximum height of 8 meters and features convenient button-controlled lifting with 358° manual rotation for flexible lighting positioning. Four 400W LED floodlights provide a total lighting capacity of 60,000 lumens, while the 115L fuel tank supports extended outdoor operation. With a single-axle trailer, 14-inch tyres, IP65 LED lamps and a REHLKO KDW1003 engine meeting EU Stage V / EPA Tier 4 Final emission standards, the GLT1600L-8HR is designed for demanding mobile lighting applications.
Light Tower
| Model | GLT1600L-8HR |
| Lifting System | 8 Meters, Hydraulic Lifting |
| Mast Rotation System | 358° Manual |
| Total Power of Lights | 4 x 400W LED |
| Frequency | 50/60Hz |
| Voltage | 110~240V |
| Phase | Single |
| Rated Power | 6.0KW/50Hz; 7.0KW/60Hz |
| Trailer Structure | Single Axle, 14-inch Tyres |
Diesel Engine
| Engine Model | REHLKO KDW1003 |
| Cylinder Number | 3 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | Indirect Injection |
| Bore x Stroke | 75 x 77.6 mm |
| Compression Ratio | 22.8:1 |
| Engine Speed | 1500/1800RPM |
| Displacement | 1.028L |
| Rated Power | 8.0KW/1500RPM; 9.0KW/1800RPM |
| Oil Capacity | 2.4L |
| Governor Type | Centrifugal |
| Electric Starting System | DC 12V |
| Emission Standard | EU Stage V / EPA Tier 4 Final |
Alternator
| Number of Phase | Single |
| Rated Power | 6~8KW |
| Frequency | 50/60Hz |
| Power Factor | 1.0 |
| Temp. Rise | 125K |
| Insulation Class | H |
| Ambient Temp. | 40°C |
| IP Rating | IP23 |
| Excitation System | Self-Excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
| Coupling | Flexible Disc |
Operation Mast
| Max. Height of Mast | 8 Meters |
| Lifting System | Vertical Type, Hydraulic |
| Lifting Method | Button |
| Mast Stages | 8 |
| Rotation System | 358° Manually |
| Mast Material | Galvanized Steel Tube |
LED Lamps
| Total Power of Lamps | 4 x 400W |
| Lamps Type | LED Floodlights |
| Light Capacity | 4 x 60,000 Lumens |
| Design Lifetime | ≥50,000 Hours |
| Working Temp. | -25°C~50°C |
| Light Coverage | 5~7 Acres |
| Protection Grade | IP65 |
Control Panel
| ○ SMARTGEN HGM1790N digital controller | ○ Emergency stop button |
| ○ Main circuit breaker and individual circuit breakers for lights | ○ Hour meter |
| ○ Manual/Auto start control panel | ○ Fuel level meter |
| ○ Controller power switch | ○ Alarm buzzer |
Trailer and Sound Attenuated Enclosure
○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer
○ Highly corrosion-resistant construction
○ Heavy-duty single-axle trailer with 14-inch tyres
○ 115L fuel tank for extended outdoor operation
Container Loading Capacity
| 20GP CONTAINER | Max. 4 Sets |
| 40HQ CONTAINER | Max. 8 Sets |
Applications
The GLT1600L-8HR diesel generator mobile light tower is designed for reliable temporary lighting and auxiliary power in demanding outdoor environments. Typical applications include:
○ Construction sites
○ Mining operations
○ Road and highway projects
○ Railway and infrastructure projects
○ Oil and gas sites
○ Outdoor events and temporary lighting
○ Emergency and disaster-response lighting
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing power generation solutions for customers in construction, mining, telecommunications, infrastructure, industrial, commercial, and other demanding applications. With extensive experience in manufacturing, international sales, engineering support, and customized power solutions, GENLITEC POWER focuses on dependable products and long-term customer service.
Our product range covers diesel generator sets from small portable units to large industrial power systems, as well as mobile lighting towers with different mast heights, lifting systems, engine brands, lighting configurations, control systems, and trailer options. This broad product capability allows GENLITEC POWER to provide suitable solutions for different project requirements and operating environments.
○ Professional manufacturer of diesel generator sets and mobile lighting towers
○ Wide range of power generation and mobile lighting solutions
○ Multiple international engine and alternator brand configurations
○ Experienced export and international project support
○ Engineering support and customized product configurations
○ Quality control, testing and after-sales technical support
Warranty
12 months or 1000 working hours, whichever comes first. For details, please refer to the GENLITEC POWER® Warranty Policy.
