1500KVA Cummins Diesel Generator-50Hz

1500KVA Cummins Diesel Generator-50Hz
  • 1500KVA Cummins Diesel Generator-50Hz
  • 1500KVA Cummins Diesel Generator-50Hz
  • 1500KVA Cummins Diesel Generator-50Hz
  • 1500KVA Cummins Diesel Generator-50Hz
  • 1500KVA Cummins Diesel Generator-50Hz

Short Description:

GENLITEC POWER® GPC1500D5 (open type), GPC1500S5 (silent type) Cummins diesel generator set powered by original CUMMINS KTA50-GS8, with prime power 1200KW/1500KVA, standby power 1320KW/1650KVA....


  • Open Type Model: GPC1500D5
  • Silent Type Model: GPC1500S5
  • Engine: CUMMINS KTA50-GS8
  • Prime Power: 1200KW/1500KVA
  • Standby Power: 1320KW/1650KVA

Product Details

Product Tags

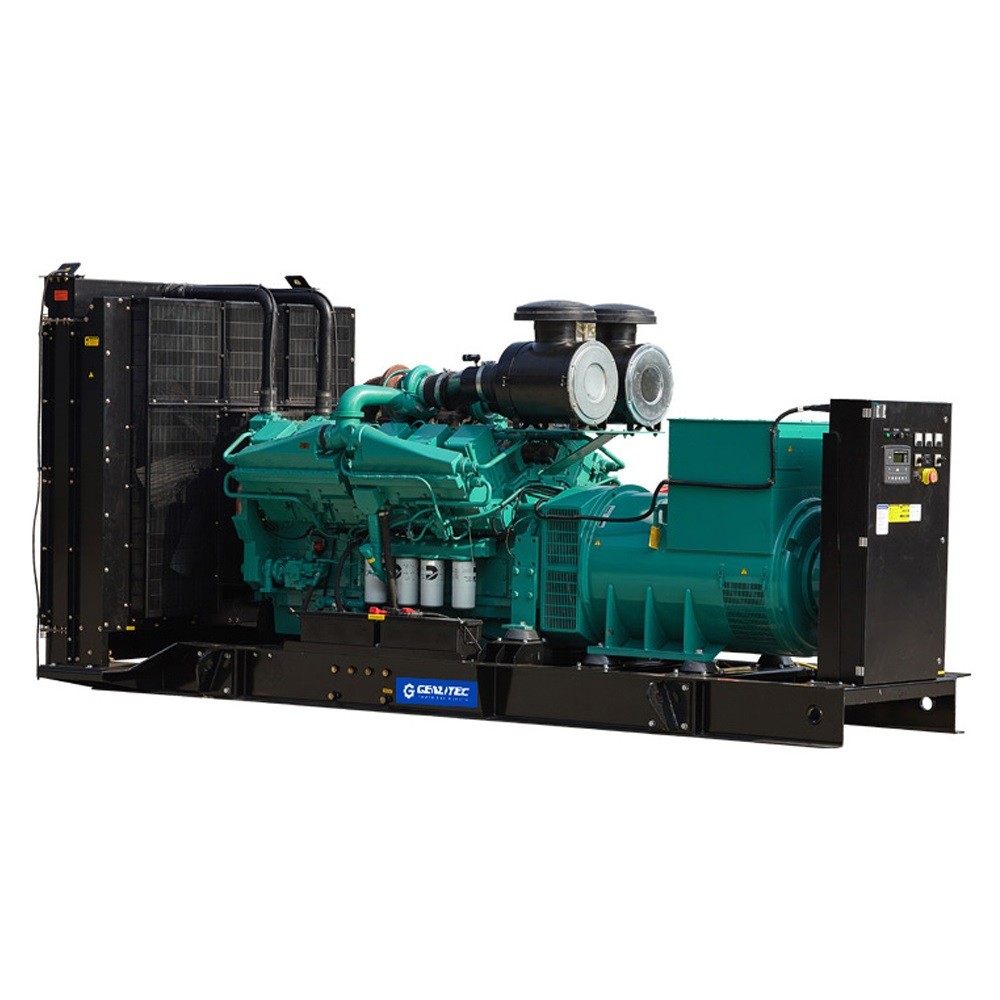

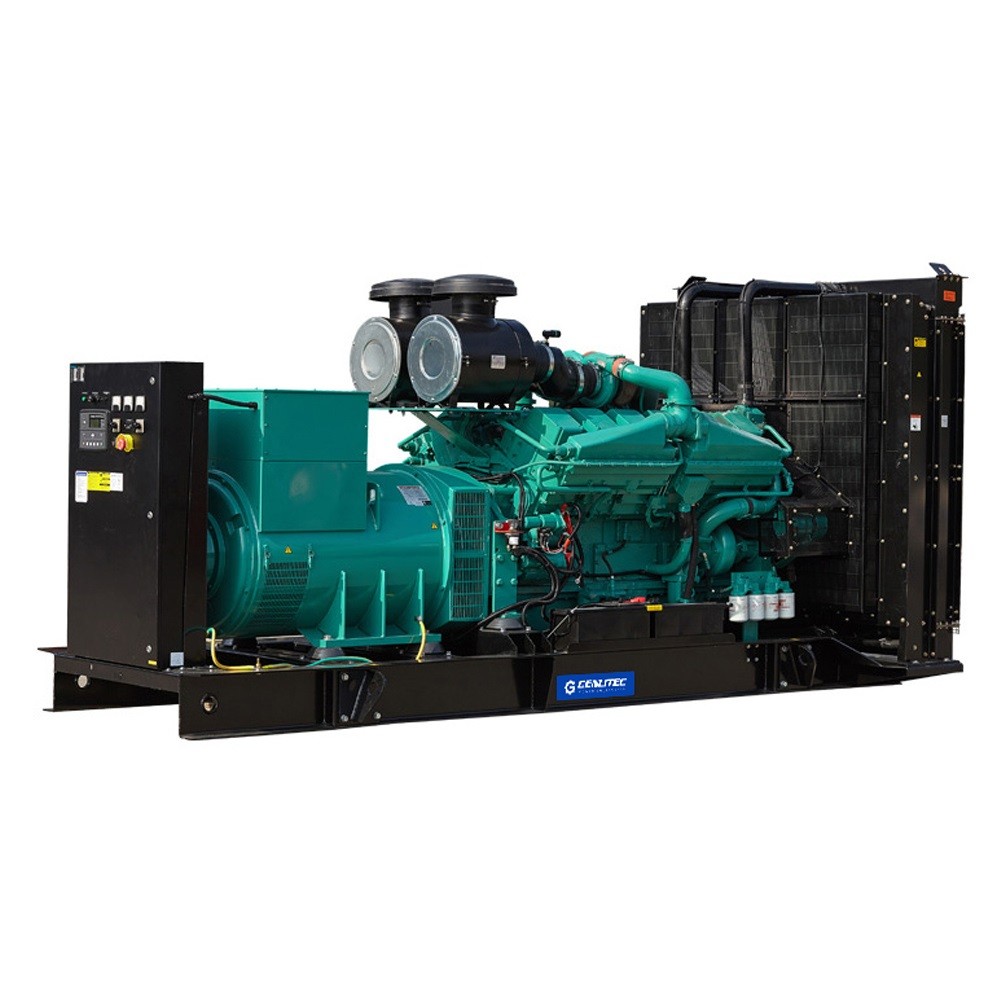

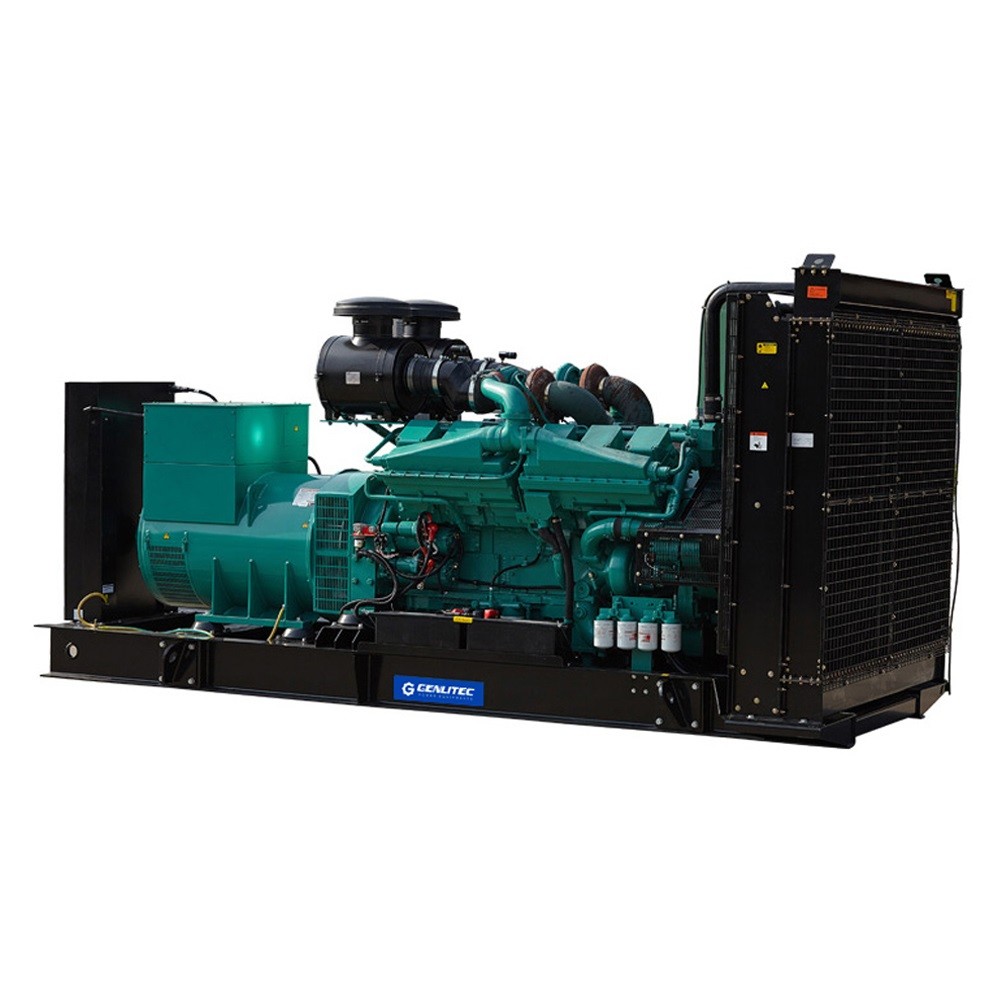

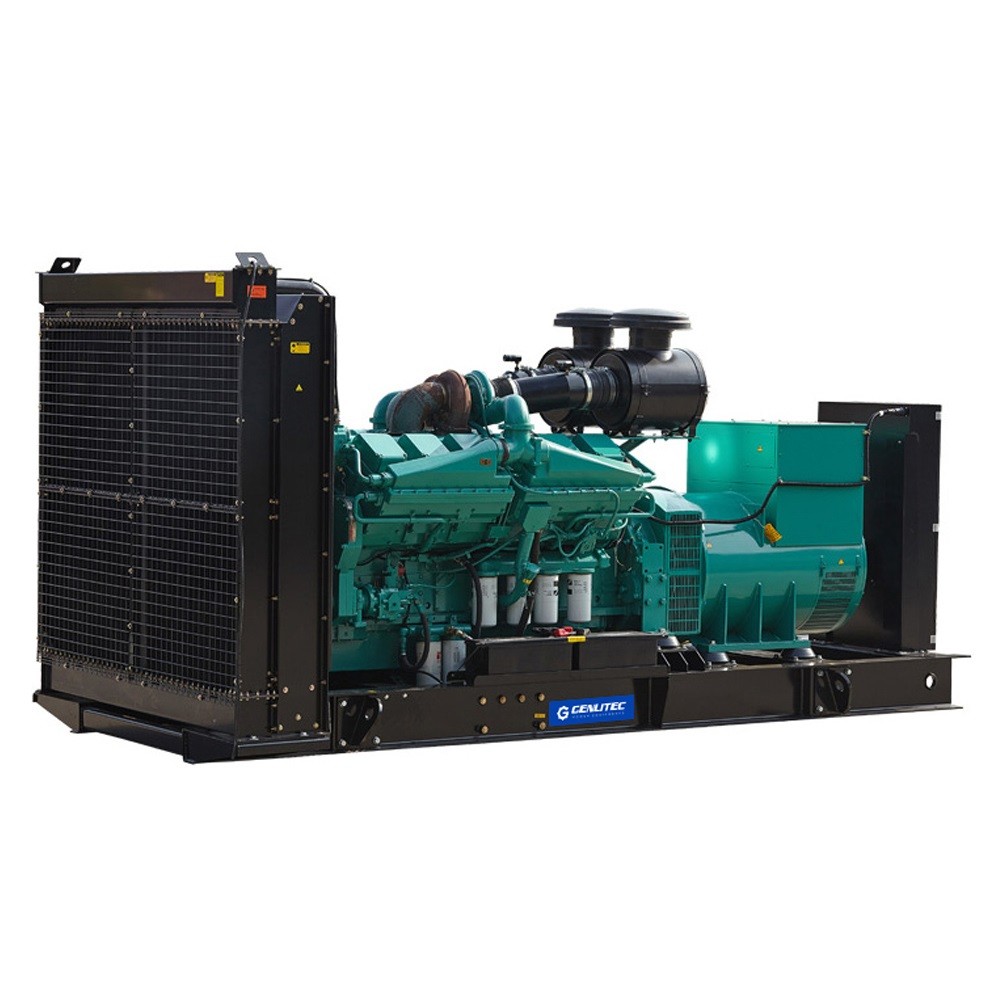

GENLITEC POWER® 1200KW/1500KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS KTA50-GS8 brand water cooled diesel engine

○ Original STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 220/380V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

Open Type Model GPC1500D5
Silent Type Model GPC1500S5
Prime Power 1200KW/1500KVA
Standby Power 1320KW/1650KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Frequency 50Hz
Rated Voltage 220/380V, 230/400V, 240/415V
Fuel Tank Capacity 2000L

● DIESEL ENGINE


Engine Model CUMMINS KTA50-GS8
Cylinder Number 16-V
Aspiration System Turbocharged, Water/Air Cooling
Cooling Method Water Cooled
Governor Type EFC Electronic
Bore x Stroke 159 x 159 mm
Compression Ratio 13.9:1
Rated Speed 1500RPM
Displacement 50L
Rated Power 1287KW
Standby Power 1429KW
Coolant Capacity 140L
Oil Capacity 204L
Fuel System CUMMINS PT Pump
Electric Starting System DC 24V

● FUEL CONSUMPTION

100% Prime Load 263L/H
75% Prime Load 202L/H
50% Prime Load 142L/H
25% Prime Load 75L/H

ALTERNATOR


Number of Phase 3
Rated Power 1200KW/1500KVA
Frequency 50Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 12
Insulation Class H
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

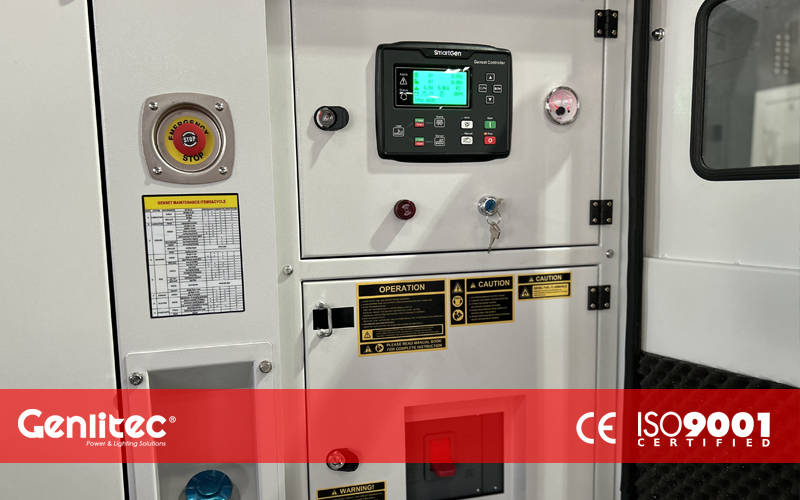

CONTROL PANEL

Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer

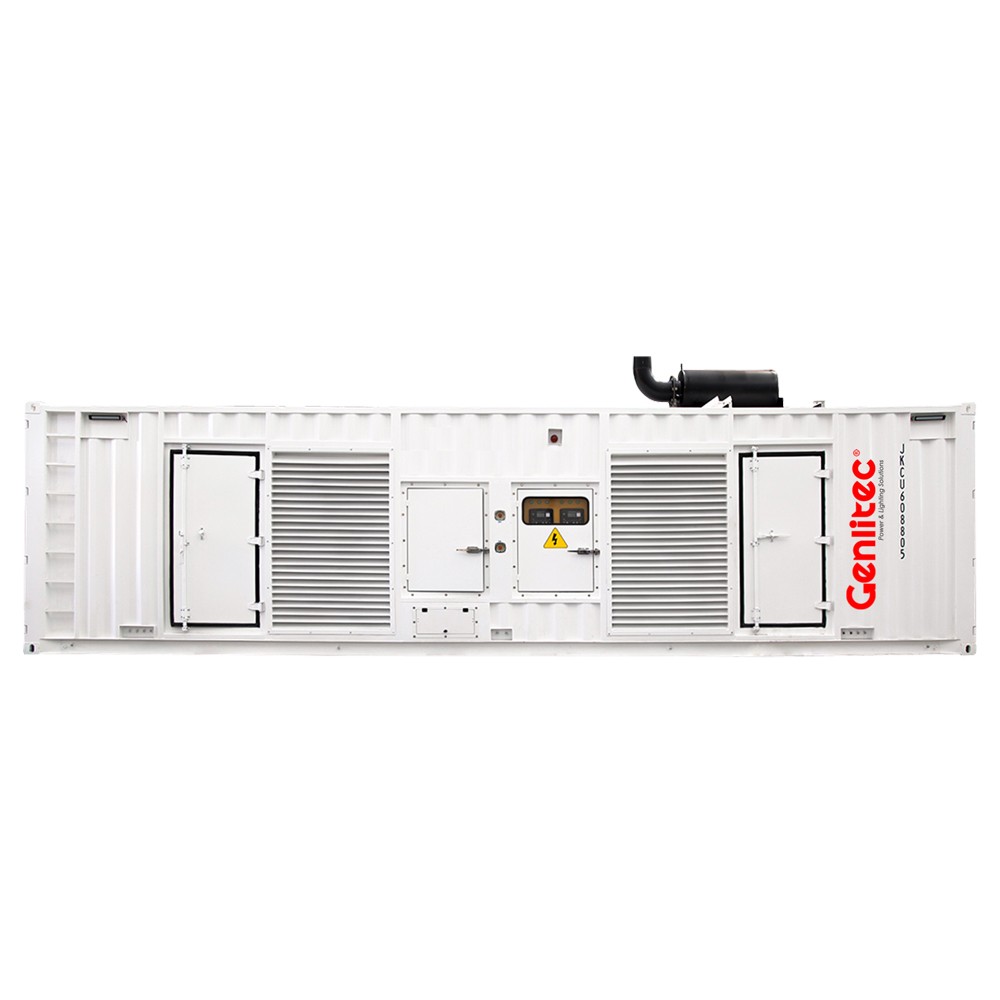

SOUND ATTENUATED ENCLOSURE

Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction

Brand New ISO 40'' Containerized Enclosure with CSC Certification


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS Panel (for automatic start & stop when electricity power off & on)

Heater

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)

Remote & Mornitoring System (4G or Wifi)

Sychronization Panel
