50Hz 22kW 28kVA Diesel Generator with Kubota V3300-E2BG2 Diesel Engine
Short Description
GENLITEC POWER GPK28D5/GPK28S5 diesel generator set powered by original KUBOTA V3300-E2BG2, with prime power 22KW/28KVA, standby power 24KW/30KVA.
- ModelGPK28S5
- Prime Power (PRP)22kW/28kVA
- Standby Power (ESP)24kW/30kVA
- EngineV3300-E2BG2
- Fuel consumption (100%)7.65L/H
Product Details
Product Tags
Introduction
The GENLITEC POWER GPK28D5 and GPK28S5 are 28kVA diesel generator sets delivering 22KW/28KVA prime power and 24KW/30KVA standby power. Powered by the Kubota V3300-E2BG2 four-cylinder, water-cooled diesel engine, they provide reliable and stable power for commercial, industrial, construction and standby applications.

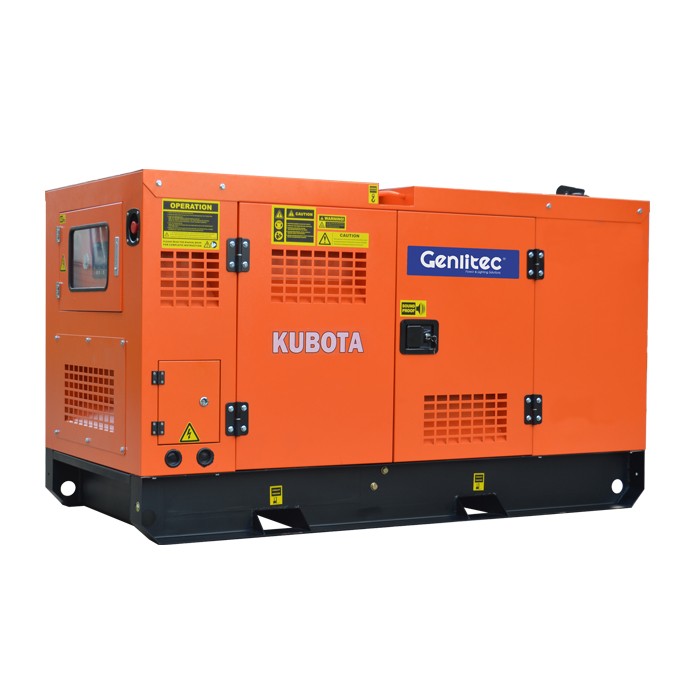

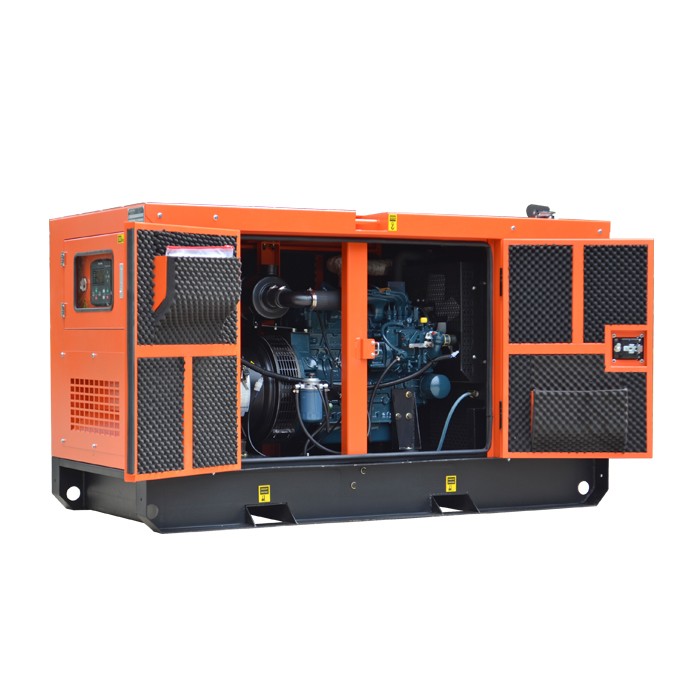

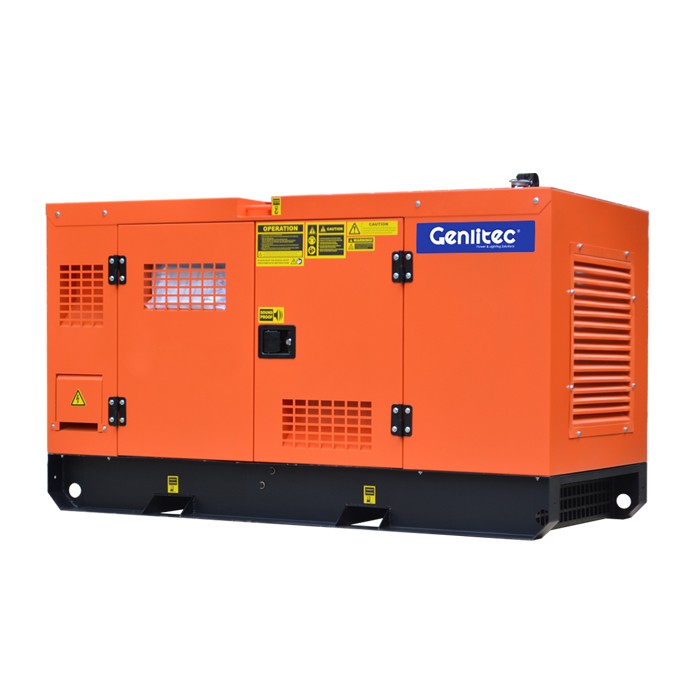

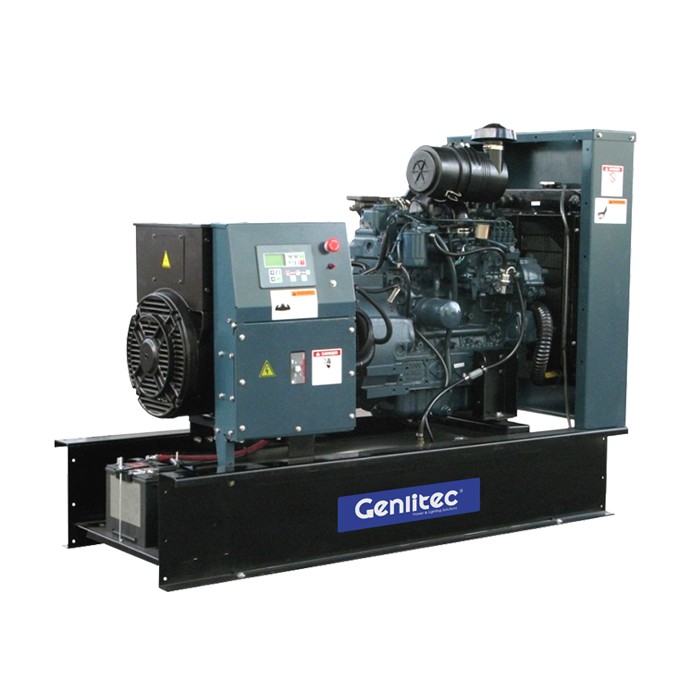

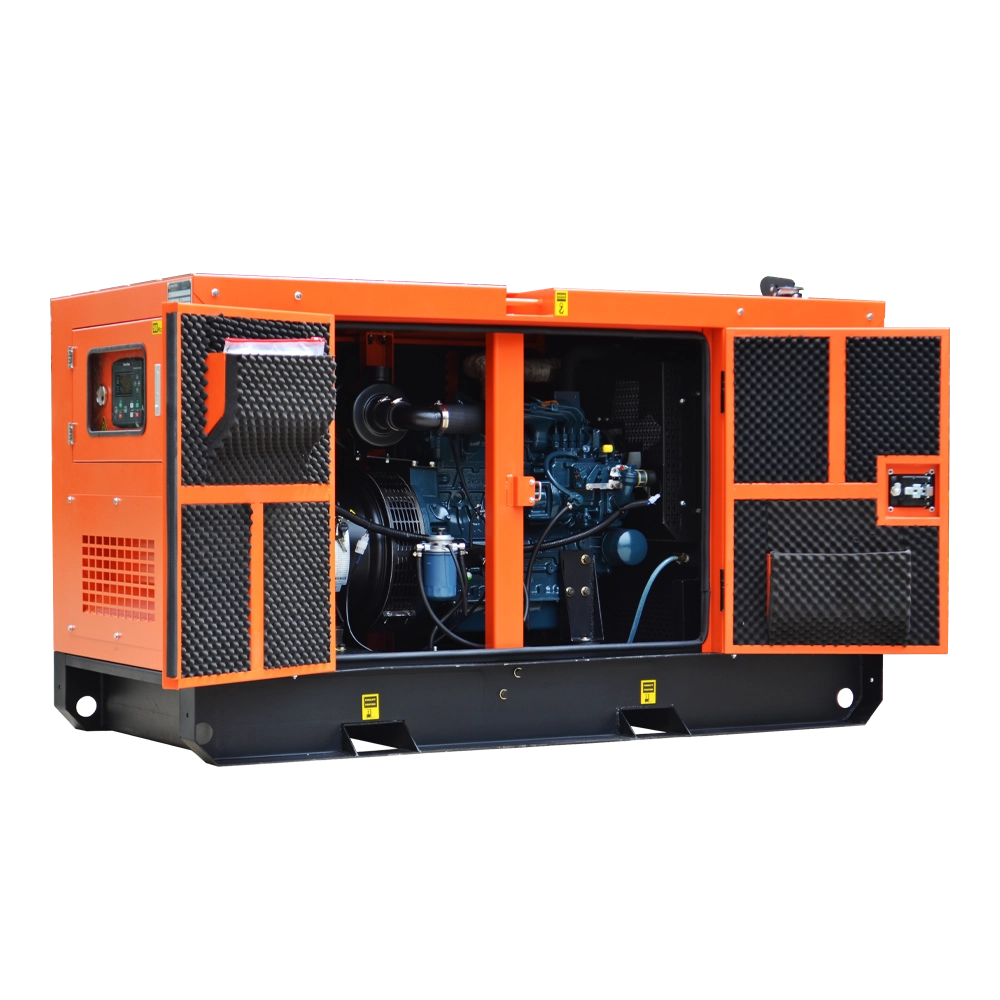

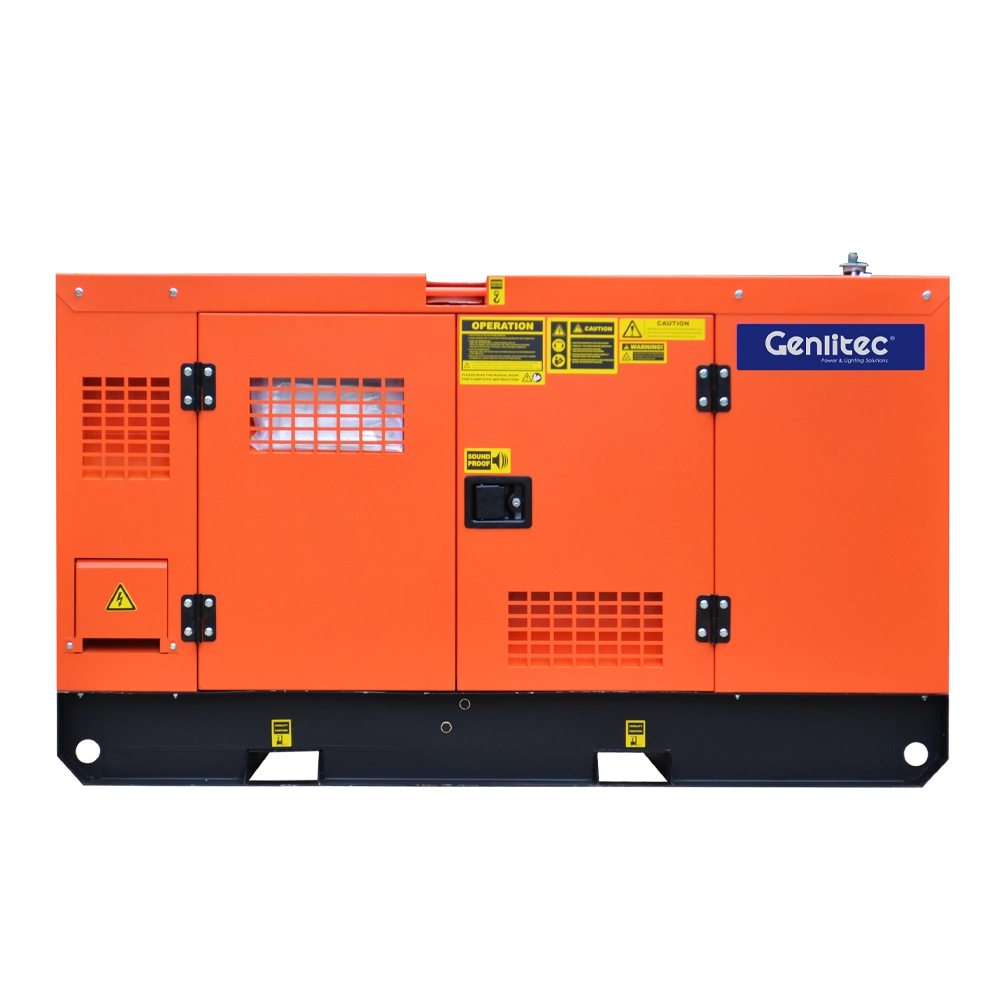

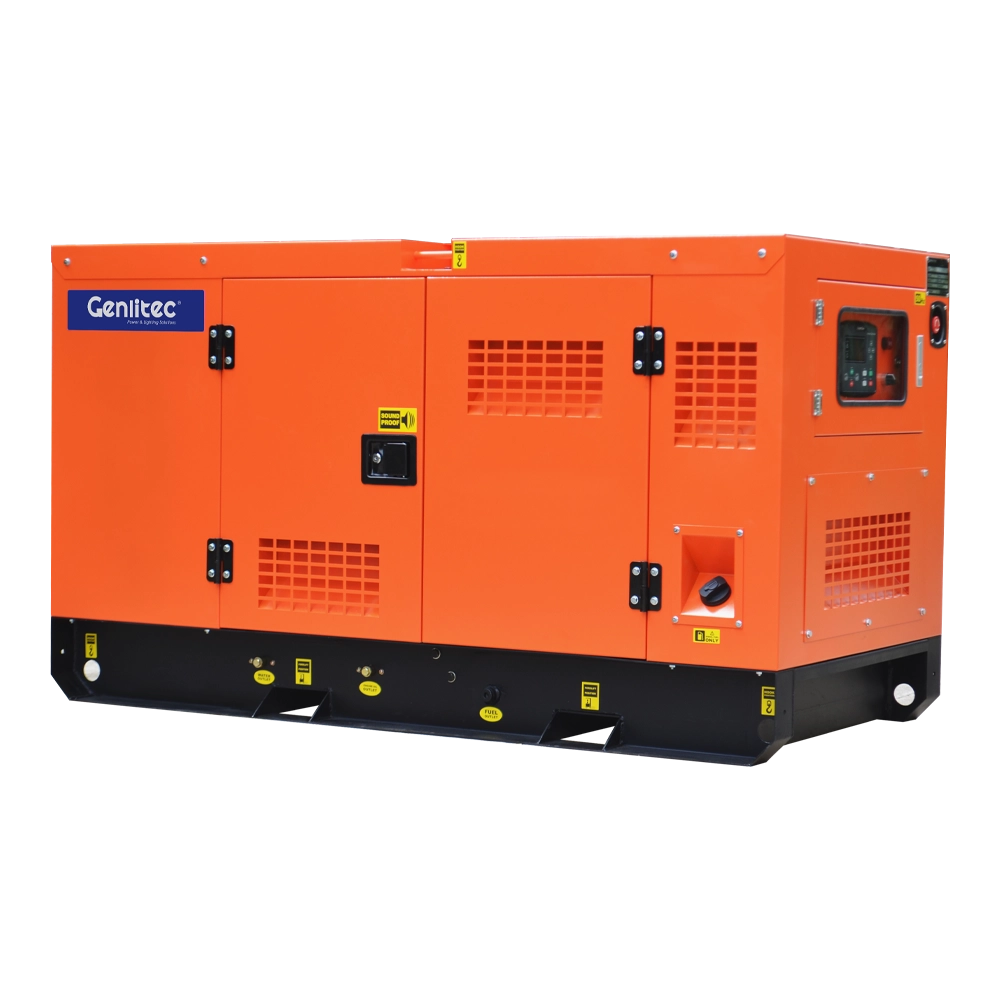

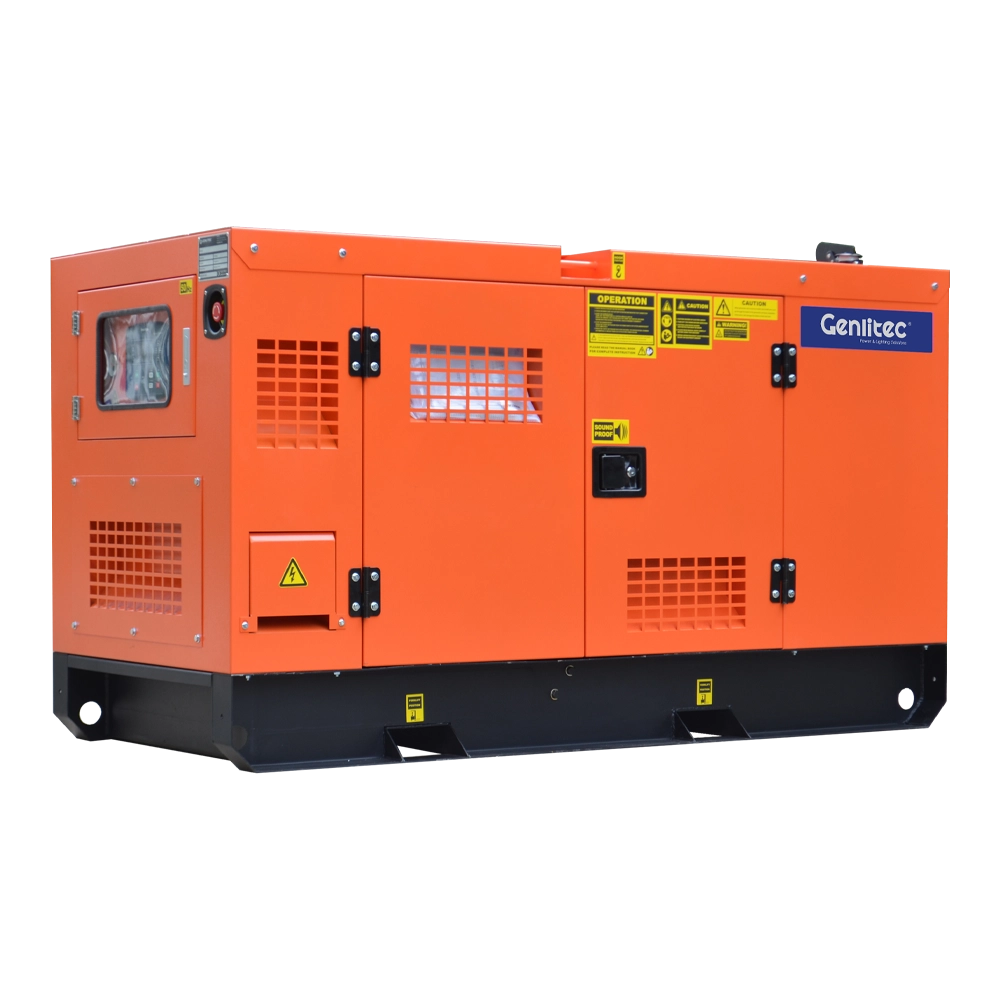

GPK28D5 is the open type model, while GPK28S5 features a sound-attenuated enclosure for quieter outdoor operation. Optional ATS, remote monitoring, larger fuel tanks are available.
Generator Set
| Open Type Model | GPK28D5 |
| Silent Type Model | GPK28S5 |
| Frequency | 50Hz |
| Phase & Wires | 3 Phase, 4 Wires |
| Power Factor | 0.8 |
| Prime Power | 22KW/28KVA |
| Standby Power | 24KW/30KVA |
| Rated Voltage | 380~415V |
| Fuel Tank Capacity | 50L |
Diesel Engine
| Engine Model | Kubota V3300-E2BG2 |
| Aspiration System | Natural |
| Cooling Method | Water Cooled |
| Combustion System | E-TVCS |
| Bore x Stroke | 98 x 110mm |
| Compression Ratio | 23:1 |
| Rated Speed | 1500 RPM |
| Displacement | 3.318L |
| Rated Power | 26.3KW |
| Standby Power | 28.9KW |
| Fuel Injection Pump | Bosch Type PFR MD Pump |
| Cylinder Number | 4 |
| Oil Capacity | 13.2L |
| Charger Alternator Capacity | 12V |
| Electric Starting System | DC 12V |
Fuel Consumption
| 100% Prime Load | 7.65L/H |
| 75% Prime Load | 5.64L/H |
| 50% Prime Load | 3.76L/H |
| 25% Prime Load | - |
Alternator
| Number of Phase | 3 |
| Rated Power | 22KW/28KVA |
| Frequency | 50Hz |
| Power Factor | 0.8 |
| Poles | 4 |
| Temp. Rise | 125K |
| Insulation Class | H |
| Ambient Temp. | 40℃ |
| IP Rating | IP23 |
| Excitation System | Self-excited |
| Bearing | Single |
| Coating | Vacuum Impregnation |
| Voltage Regulator | A.V.R |
Control Panel
○ Digital controller
○ Emergency stop button
○ Start / Stop control
○ Generator output voltage display
○ Frequency display
○ Running hours display
○ Engine speed display
○ Battery voltage display
○ Oil pressure monitoring
○ Coolant temperature monitoring
○ Over / under voltage protection
○ Over / under frequency protection
○ Overload protection
○ Low oil pressure shutdown
○ High coolant temperature shutdown
○ Low / high battery voltage alarm
Sound Attenuated Enclosure
○ High-quality steel enclosure with powder-coated finish
○ Weatherproof and corrosion-resistant construction
○ Sound-absorbing materials for reduced operating noise
○ Lockable access doors for convenient operation and maintenance
○ Suitable for outdoor installation
Options
○ Automatic Transfer Switch (ATS)
○ Remote monitoring system
○ Battery charger
○ Engine pre-heater
○ Larger fuel tank
○ Customized voltage and frequency configurations
Applications
○ Commercial buildings
○ Industrial facilities
○ Construction sites
○ Farms and agricultural facilities
○ Telecommunications
○ Residential backup power
○ Emergency and standby power
Why Choose GENLITEC POWER
GENLITEC POWER is a professional manufacturer and exporter of diesel generator sets and mobile lighting towers, providing reliable power solutions for customers worldwide.
○ Founded in 2016 with 10+ years of industry experience
○ 66,000 m² manufacturing park with more than 7,000 m² assembly workshop
○ Annual production capacity of more than 2,500 generator sets
○ Diesel generator range from 5kVA to 2,500kVA
○ Engine solutions from Cummins, Perkins, Caterpillar, Yanmar, Kubota, Isuzu, Deutz, SDEC, Weichai and Yuchai
○ Alternator solutions from Stamford, Leroy Somer and GENLITEC
○ Engineering support for ATS, synchronization, paralleling and remote monitoring systems
○ Factory testing and inspection before shipment
○ Products supplied to customers in more than 50 countries
○ OEM and customized generator solutions available
Warranty
GENLITEC POWER provides a standard warranty of 12 months or 1000 working hours, whichever comes first.
FAQ
Q: What is the prime power of the GPK28D5 and GPK28S5?
A: The prime power is 22KW/28KVA.
Q: What is the standby power?
A: The standby power is 24KW/30KVA.
Q: Which engine is used in this generator set?
A: The GPK28D5 and GPK28S5 are powered by the Kubota V3300-E2BG2 diesel engine.
Q: Is the Kubota V3300-E2BG2 water cooled?
A: Yes. It is a four-cylinder, water-cooled diesel engine rated at 1500 RPM.
Q: What is the fuel consumption at 100% prime load?
A: Fuel consumption is approximately 7.65L/H at 100% prime load.
Q: What is the fuel tank capacity?
A: The standard fuel tank capacity is 50L.
Q: What voltage does the generator set provide?
A: The standard rated voltage is 380~415V, with 3-phase, 4-wire output.
Q: What is the difference between GPK28D5 and GPK28S5?
A: GPK28D5 is the open type model, while GPK28S5 is equipped with a sound-attenuated enclosure for quieter operation.
Q: Can the generator set be customized?
A: Yes. Options include ATS, remote monitoring, larger fuel tanks, synchronization and paralleling systems, and customized voltage or frequency configurations.
Q: What is the warranty period?
A: The standard warranty is 12 months or 1000 working hours, whichever comes first.
