Introduction

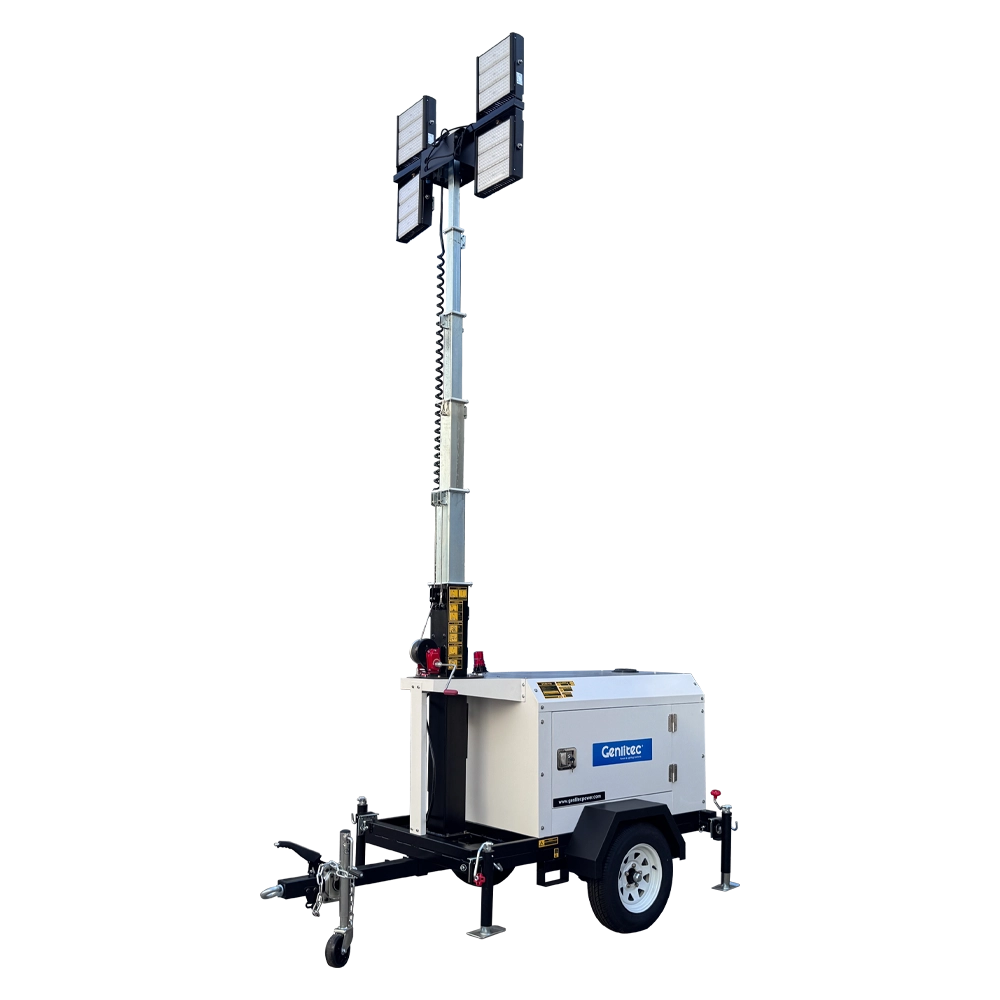

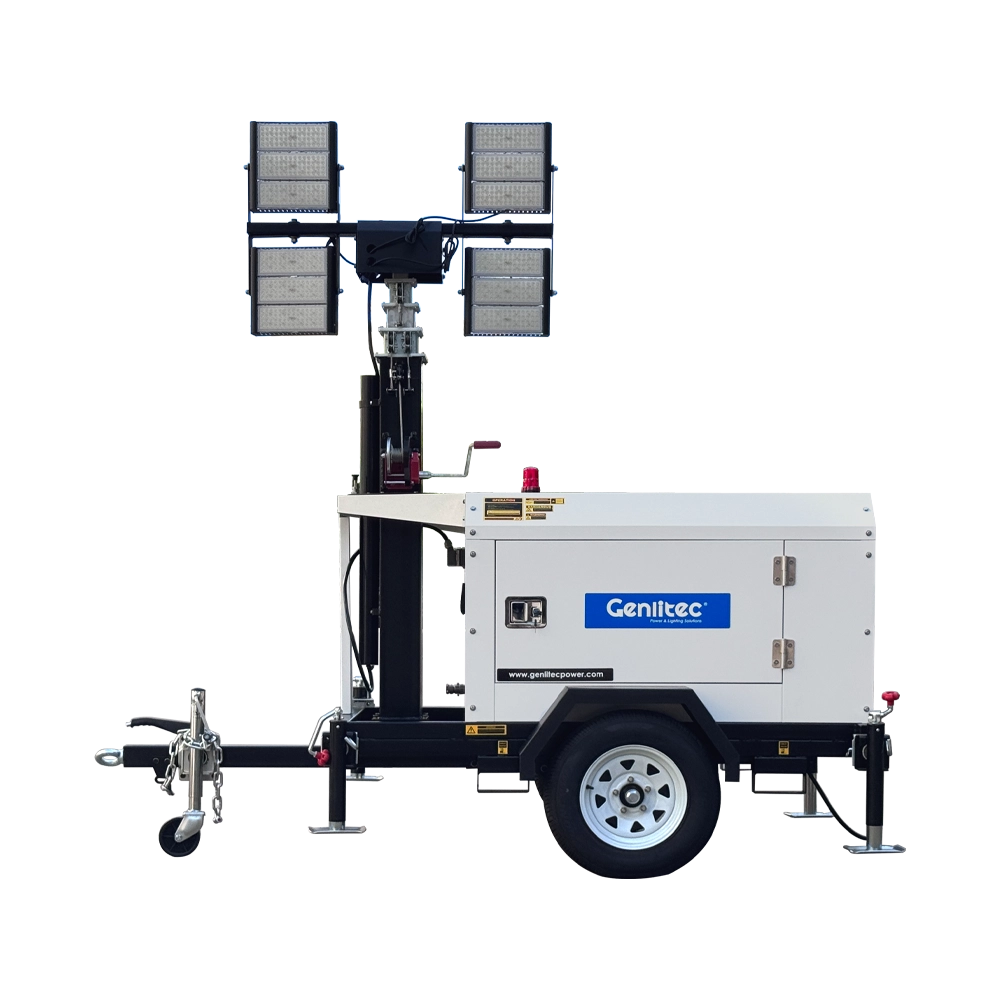

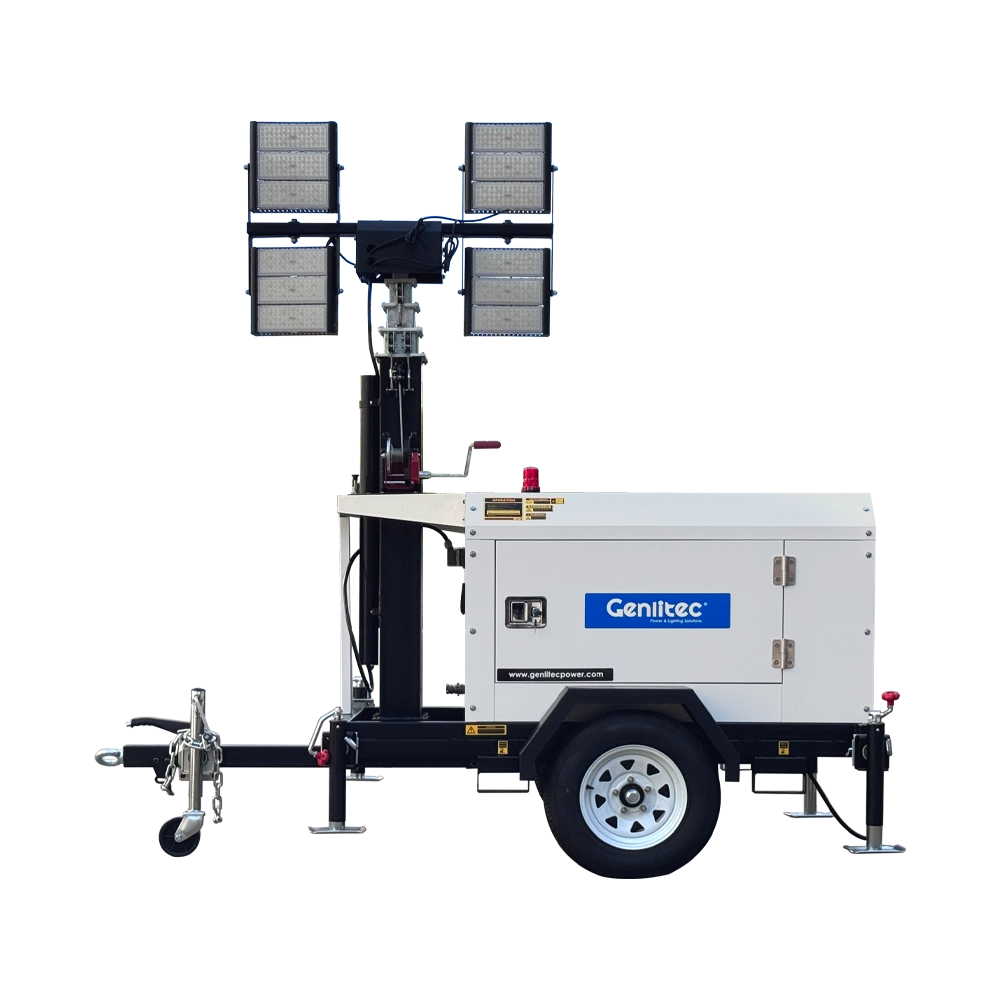

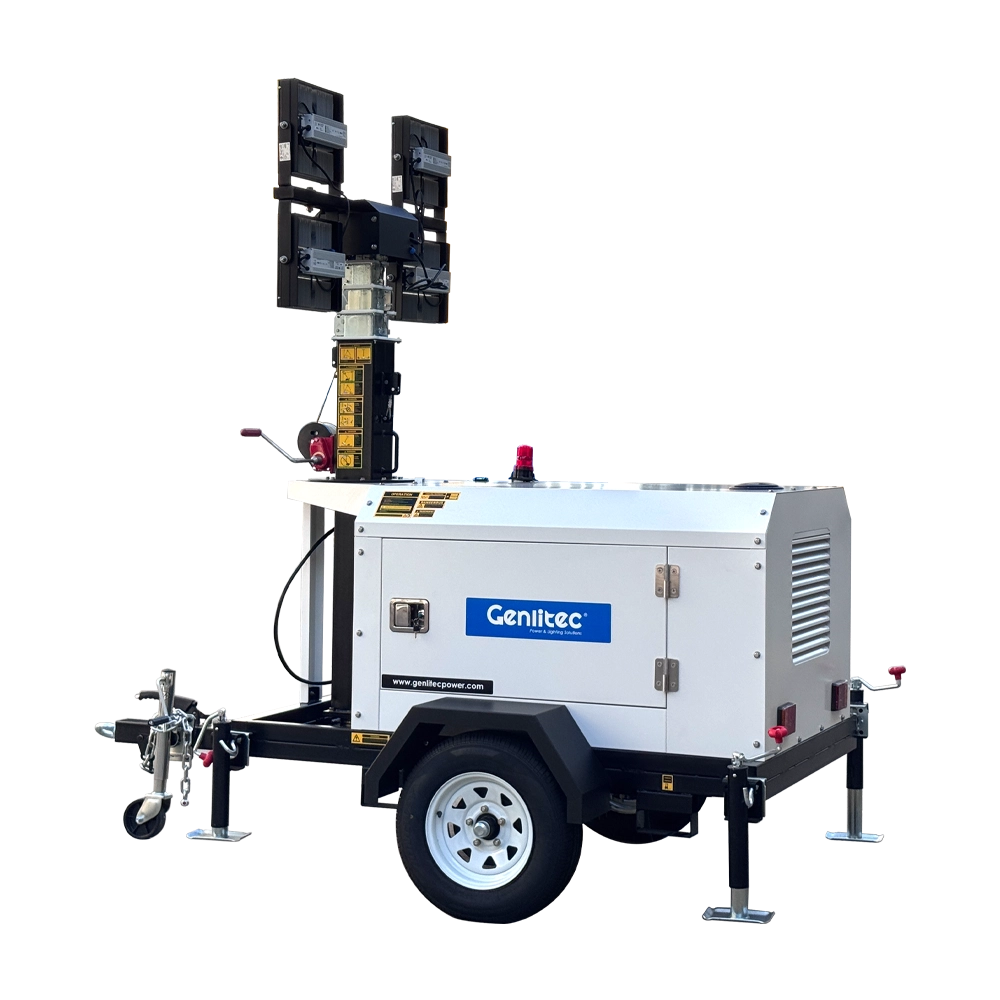

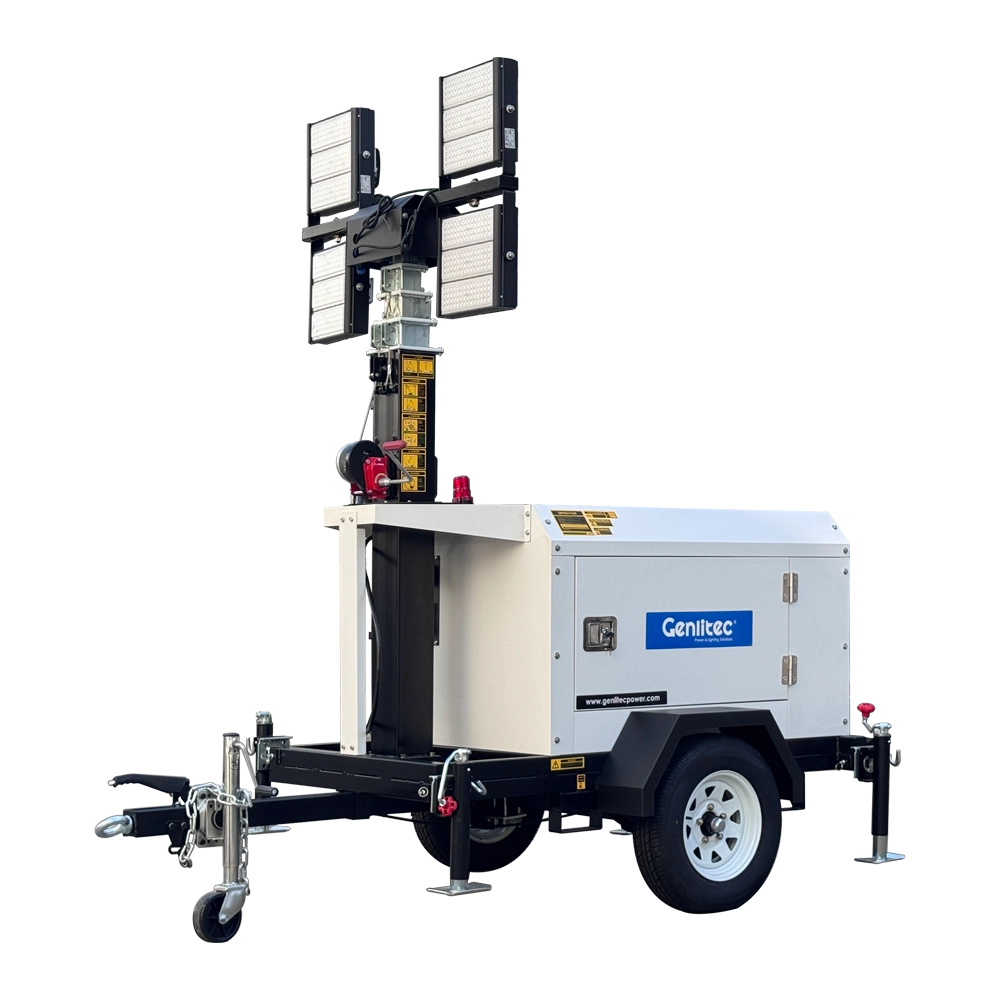

The GENLITEC POWER® GLT1600L-7VMR is a 7-meter vertical manual lifting LED light tower designed for reliable temporary lighting in construction sites, mining operations, road projects, outdoor events and other demanding applications.

Powered by an original KOHLER KDW1003 water-cooled diesel engine and equipped with 4 x 400W LED floodlights, the light tower delivers a total lighting capacity of up to 240,000 lumens. The vertical mast uses a manual self-locking winch and provides 358° manual rotation for flexible lighting direction adjustment.

The GLT1600L-7VMR features a trailer-mounted design, heavy-duty steel structure, 100L fuel tank, weather-resistant sound-attenuated enclosure and practical control system, making it suitable for convenient transportation and reliable outdoor operation.

Light Tower

Model	GLT1600L-7VMR
Lifting System	7 Meters, Vertical Manual Lifting
Mast Rotation System	358° Manual
Total Power of Lights	4 x 400W LED
Frequency	50/60Hz
Voltage	110~240V
Phase	Single
Rated Power	6.0kW/50Hz; 7.0kW/60Hz
Trailer Structure	Single Axle, 13-inch Tyres

Diesel Engine

Engine Model	REHLKO KDW1003
Cylinder Number	3
Aspiration System	Natural
Cooling Method	Water Cooled
Combustion System	Indirect Injection
Bore x Stroke	75 x 77.6 mm
Compression Ratio	21.8:1
Engine Speed	1500/1800 RPM
Displacement	1.028L
Rated Power	8.0kW/1500 RPM; 9.0kW/1800 RPM
Fuel Injection Pump	Mechanical Pump
Oil Capacity	4.7L
Governor Type	Mechanical
Electric Starting System	DC 12V
Emission Standard	EPA Tier 4 Final / EU Stage V

Alternator

Number of Phase	Single
Rated Power	6~8kW
Frequency	50/60Hz
Power Factor	1.0
Temp. Rise	125K
Insulation Class	H
Ambient Temp.	40°C
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexible Disc

Operation Mast

Max. Height of Mast	7 Meters
Lifting System	Vertical Manual
Lifting Method	Self-Lock Winch
Mast Stages	6
Rotation System	358° Manual
Mast Material	Galvanized Steel Tube
Winch Type	1 x manual

Lamps

Total Power of Lamps	4 x 400W
Lamp Type	LED Floodlights
Light Capacity	4 x 60,000 Lumens
Design Lifetime	≥50,000 Hours
Working Temp.	-25°C~50°C
Light Coverage	5~7 Acres
Protection Grade	IP65

Control Panel

○ Emergency stop button

○ Main circuit breaker and individual circuit breakers for lights

○ Hour meter

○ Manual/Auto-start control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

The control panel is equipped with a SMARTGEN HGM1790N digital controller, DELIXI main circuit breaker and individual circuit breakers for each light.

Trailer & Sound Attenuated Enclosure

○ Fully weatherproof sound-attenuated enclosure with internal exhaust silencer

○ Highly corrosion-resistant construction

○ Heavy-duty single-axle trailer with 13-inch tyres

○ Heavy-duty fabricated steel base frame with 100L fuel tank

○ Diesel engine and alternator mounted on the base frame with anti-vibration mountings

○ 50°C radiator with engine-driven fan mounted on the base frame

○ 12V DC electric start system with maintenance-free lead-acid battery

○ Complete engine alarm system

Container Loading Capacity

20GP Container	Max. 6 Sets
40HQ Container	Max. 12 Sets

Applications

○ Construction sites and infrastructure projects

○ Mining and quarry operations

○ Road construction and maintenance projects

○ Outdoor events and temporary venues

○ Emergency and temporary outdoor lighting

Key Features

○ 7-meter vertical manual lifting mast with 358° manual rotation

○ Original KOHLER KDW1003 water-cooled diesel engine

○ EPA Tier 4 Final / EU Stage V emission compliance

○ 4 x 400W LED floodlights delivering up to 240,000 lumens

○ Trailer-mounted design for convenient transportation between job sites

○ Weatherproof sound-attenuated enclosure for outdoor operation

○ SMARTGEN HGM1790N digital controller

Warranty

○ GENLITEC POWER® standard warranty: 12 months or 1000 working hours, whichever comes first.

○ Warranty coverage is subject to the GENLITEC POWER® Warranty Policy.

Options

○ SMARTGEN ALC404 automatic lighting tower controller

○ SMARTGEN ALC704 automatic lighting tower controller

○ SMARTGEN ALC708 automatic lighting tower controller

○ Remote control & monitoring system

○ Wi-Fi router (4G SIM)

○ Security camera

○ Grounding rod

○ Water jacket heater

○ Lockable battery isolator

○ Fire extinguisher

○ Wheel chocks

○ Reflector set

FAQ

What is the maximum mast height of the GLT1600L-7VMR?

The GLT1600L-7VMR has a maximum mast height of 7 meters. Its vertical manual lifting system uses a self-locking winch and provides 358° manual rotation.

How many LED lights are installed on this light tower?

The light tower is equipped with 4 x 400W LED floodlights. Each lamp provides 60,000 lumens, giving a total lighting capacity of up to 240,000 lumens.

Which engine is used on the GLT1600L-7VMR?

The GLT1600L-7VMR is powered by an original KOHLER KDW1003 three-cylinder, naturally aspirated, water-cooled diesel engine with a mechanical governor and DC 12V electric starting system. The engine is available with EPA Tier 4 Final and EU Stage V emission compliance.

Is the KOHLER KDW1003 engine suitable for low-emission applications?

Yes. The specified KOHLER KDW1003 engine is available in EPA Tier 4 Final and EU Stage V compliant configurations, making it suitable for projects where strict non-road diesel emission requirements apply.

How many light towers can be loaded in a container?

The stated loading capacity is a maximum of 6 sets in a 20GP container and a maximum of 12 sets in a 40HQ container.

What is the warranty period for this light tower?

The standard GENLITEC POWER® warranty is 12 months or 1000 working hours, whichever comes first. For full warranty terms and exclusions, please refer to the GENLITEC POWER® Warranty Policy.
