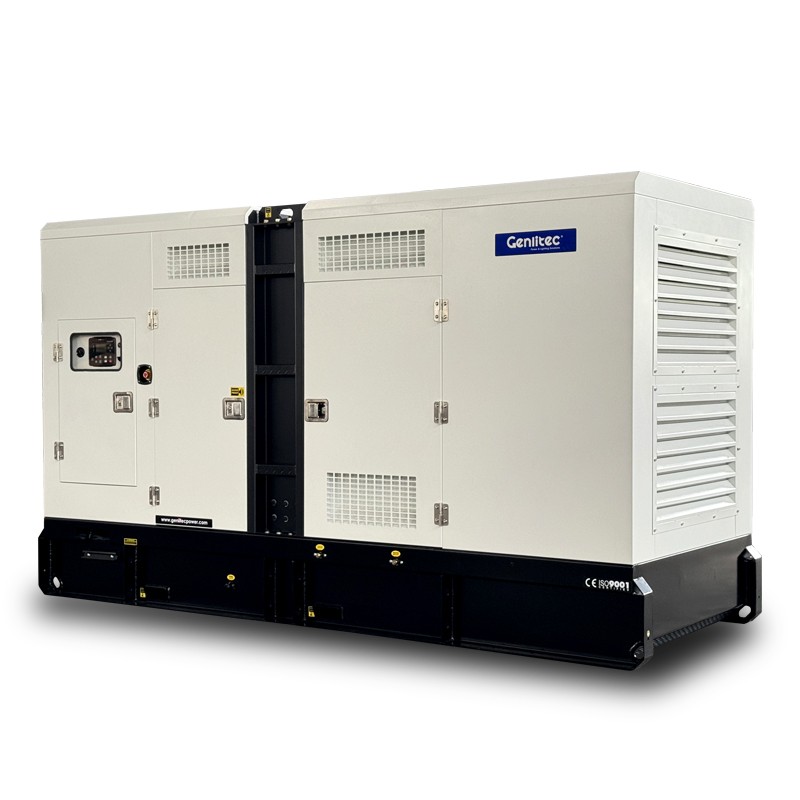

313KVA Cummins Diesel Generator-50Hz

313KVA Cummins Diesel Generator-50Hz
  • 313KVA Cummins Diesel Generator-50Hz
  • 313KVA Cummins Diesel Generator-50Hz
  • 313KVA Cummins Diesel Generator-50Hz
  • 313KVA Cummins Diesel Generator-50Hz
  • 313KVA Cummins Diesel Generator-50Hz
  • 313KVA Cummins Diesel Generator-50Hz
  • 313KVA Cummins Diesel Generator-50Hz

Short Description:

GENLITEC POWER® GPC313D5 (open type), GPC313S5 (silent type) diesel generator set powered by original CUMMINS 6LTAA9.5-G1, with prime power 250KW/313KVA and standby power 275KW/344KVA....


  • Model: GPC313D5 | GPC313S5
  • Engine: CUMMINS 6LTAA9.5-G1
  • Prime Power: 250KW/313KVA
  • Standby Power: 275KW/344KVA
  • Description: 250KW Cummins Generator

Product Details

Product Tags

Product Video



GENLITEC POWER® 250KW/313KVA CUMMINS DIESEL GENERATING SET FEATURES

○ Brand new original CUMMINS 6LTAA9.5-G1 brand water cooled diesel engine

STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 220/380V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

Open Type Model GPC313D5
Silent Type Model GPC313S5
Prime Power 250KW/313KVA
Standby Power 275KW/344KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Frequency 50Hz
Rated Voltage 220/380V, 230/400V, 240/415V
Fuel Tank Capacity 500L

● DIESEL ENGINE


Engine Model CUMMINS 6LTAA9.5-G1
Cylinder Number 6
Aspiration System Turbo Charged, Air-Cooled
Cooling Method Water Cooled
Governor Type Electronic
Bore x Stroke 116 x 148 mm
Compression Ratio 14:1
Rated Speed 1500 RPM
Displacement 9.5L
Rated Power 290KW
Standby Power 320KW
Coolant Capacity 55.5L
Oil Capacity 28.1L
Fuel System BOSCH P7100 Pump
Electric Starting System DC 24V

● FUEL CONSUMPTION

100% Prime Load 70L/ph
75% Prime Load 52L/ph
50% Prime Load 35L/ph
25% Prime Load 18L/ph

ALTERNATOR


Number of Phase 3
Rated Power 250KW/313KVA
Frequency 50Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 12
Insulation Class H Class
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R

CONTROL PANEL

Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer


SOUND ATTENUATED ENCLOSURE

Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS Panel (for automatic start & stop when electricity power off & on)

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)

○ 4G/Wifi Remote & Monitoring System

○ Sychronization Panel
