Short Description:

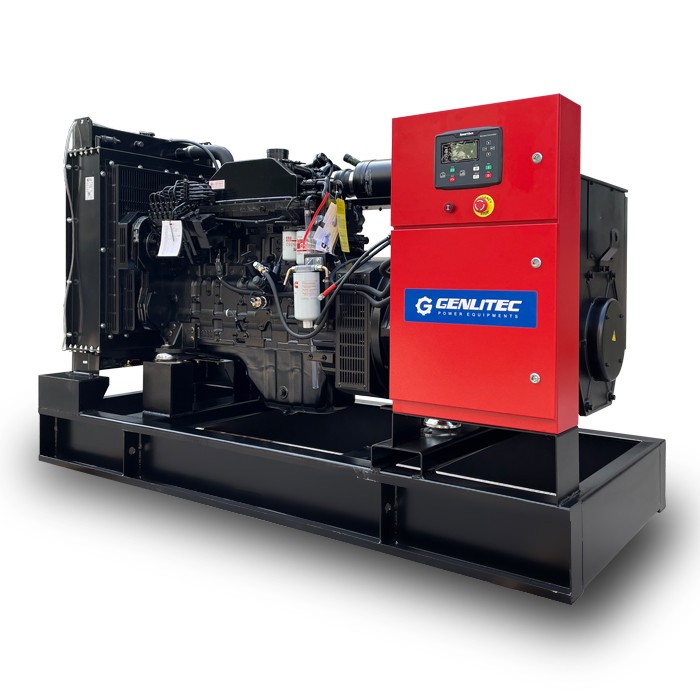

GENLITEC POWER® GPC375D5 (open type), GPC375S5 (silent type) diesel generator set powered by original CUMMINS 6ZTAA13-G3, with prime power 300KW/375KVA and standby power 330KW/413KVA....


  • Model: GPC375D5 | GPC375S5
  • Engine: CUMMINS 6ZTAA13-G3
  • Prime Power: 300KW/375KVA
  • Standby Power: 330KW/413KVA
  • Description: 375KVA Cummins Generator Set

Product Details

Product Tags



GENLITEC POWER® 300KW/375KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS 6ZTAA13-G3 brand water cooled diesel engine

STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 220/380V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

Open Type Model GPC375D5
Silent Type Model GPC375S5
Prime Power 300KW/375KVA
Standby Power 330KW/413KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Frequency 50Hz
Voltage 220/380V, 230/400V, 240/415V
Fuel Tank Capacity 570L

● DIESEL ENGINE


Model CUMMINS 6ZTAA13-G3
Cylinder Number 6
Aspiration System Turbocharged, Charge Air Cooled
Cooling Method Water Cooled
Governor Type Electronic
Bore x Stroke 130 x 163 mm
Compression Ration 17:1
Rated Speed 1500 RPM
Displacement 13L
Rated Power 340KW
Standby Power 380KW
Coolant Capacity 23.1L (Engine Only)
Oil Capacity 45L
Fuel Pump BYC PD Pump
Electric Starting System DC 24V

● FUEL CONSUMPTION

100% Prime Load 76.5L/H
75% Prime Load 56.5L/H
50% Prime Load 38.0L/H
25% Prime Load 20.9L/H

ALTERNATOR

Number of Phase 3
Rated Power 300KW/375KVA
Frequency 50Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 6/12
Insulation Type H Class
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

CONTROL PANEL

Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer


SOUND ATTENUATED ENCLOSURE

Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS Panel (for automatic start & stop when electricity power off & on)

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)

○ 4G/Wifi Remote & Monitoring System

○ Sychronization Panel
