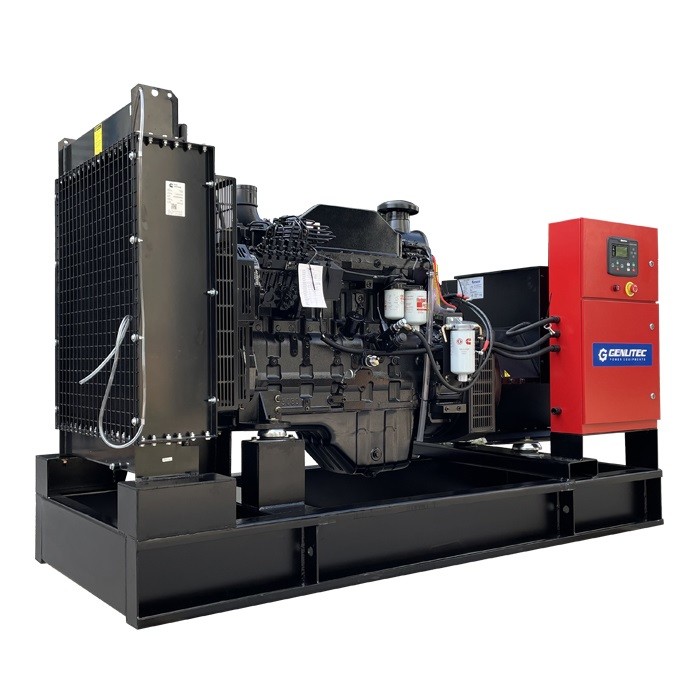

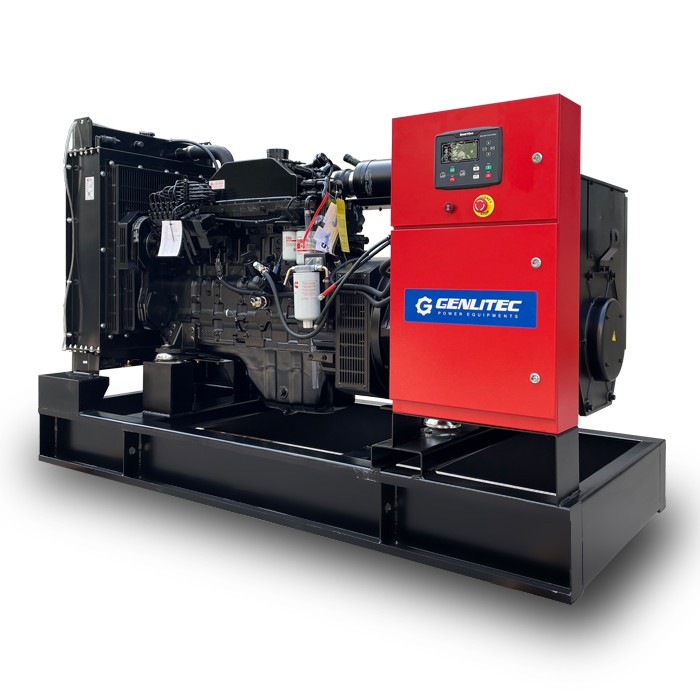

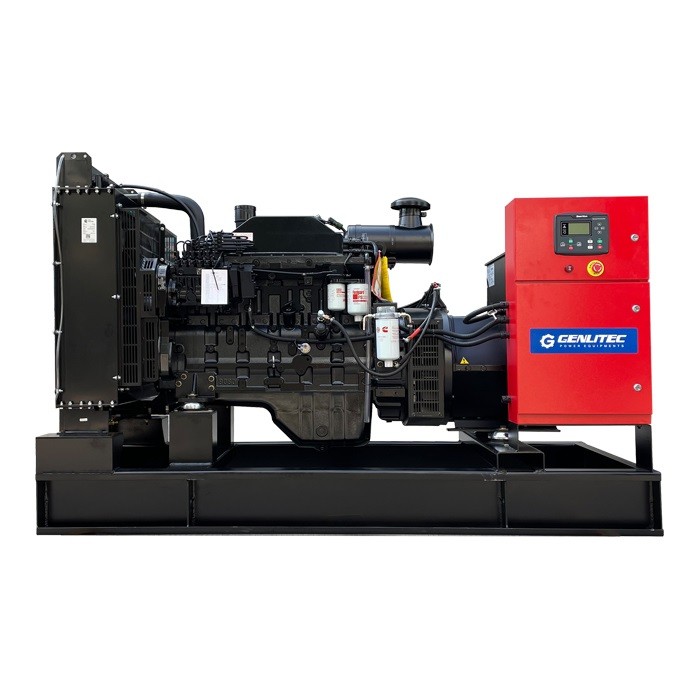

350KVA Cummins Diesel Generator-50Hz

350KVA Cummins Diesel Generator-50Hz
  • 350KVA Cummins Diesel Generator-50Hz
  • 350KVA Cummins Diesel Generator-50Hz
  • 350KVA Cummins Diesel Generator-50Hz
  • 350KVA Cummins Diesel Generator-50Hz
  • 350KVA Cummins Diesel Generator-50Hz
  • 350KVA Cummins Diesel Generator-50Hz

Short Description:

GENLITEC POWER® GPC350D5 (open type), GPC350S5 (silent type) diesel generators powered by original CUMMINS NTA855-G2A, with prime power 280KW/350KVA and standby power 308KW/385KVA....


  • Model: GPC350D5 | GPC350S5
  • Engine: CUMMINS NTA855-G2A
  • Prime Power: 280KW/350KVA
  • Standby Power: 308KW/385KVA
  • Voltage: 220/380V | 230/400V | 240/415V

Product Details

Product Tags




GENLITEC POWER® 280KW/350KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS NTA855-G2A brand water cooled diesel engine

STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 220/380V, 3-Phase, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

Open Type Model GPC350D5
Silent Type Model GPC350S5
Prime Power 280KW/350KVA
Standby Power 308KW/385KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Frequency 50Hz
Fuel Tank Capacity
530L

● DIESEL ENGINE


Model CUMMINS NTA855-G2A
Cylinder Number 6
Aspiration System Turbocharged, Water/Air Cooling
Cooling Method Water Cooled
Governor Type GAC Electronic
Bore x Stroke 140 x 152 mm
Comrepssion Ratio 14:1
Rated Speed 1500 RPM
Displacement 14L
Rated Power 313KW
Standby Power 343KW
Coolant Capacity 85L
Oil Capacity 36.7L
Fuel System PT Pump
Starter Motor Capacity DC 24V

● FUEL CONSUMPTION

100% Prime Power 71.9L/H
75% Prime Power 54.9L/H
50% Prime Power 32.3L/H
25% Prime Power 17.5L/H

ALTERNATOR


Number of Phase 3
Rated Power 280KW/350KVA
Frequency 50Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 12
Insulation Type H Class
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

CONTROL PANEL

Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer

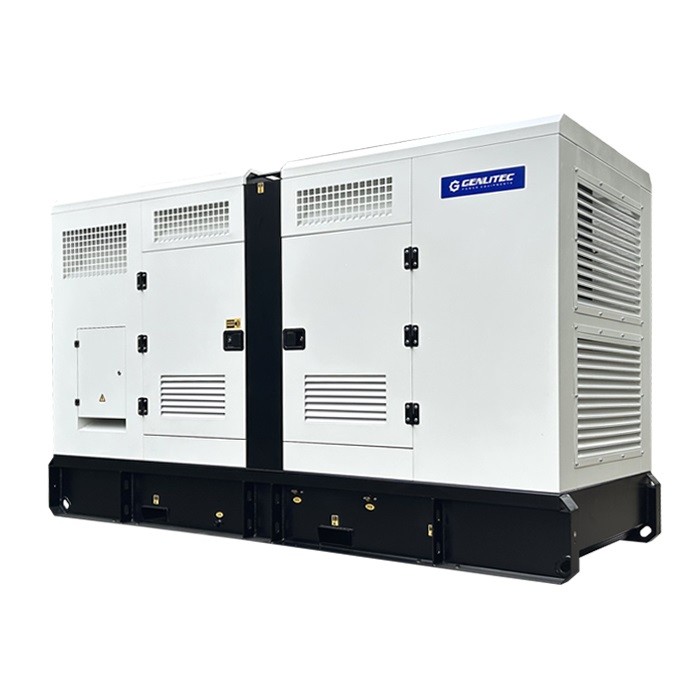

SOUND ATTENUATED ENCLOSURE

Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS (for automatic start & stop when electricity power off & on)

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)

○ 4G/Wifi Remote & Monitoring System

○ Sychronization Panel
