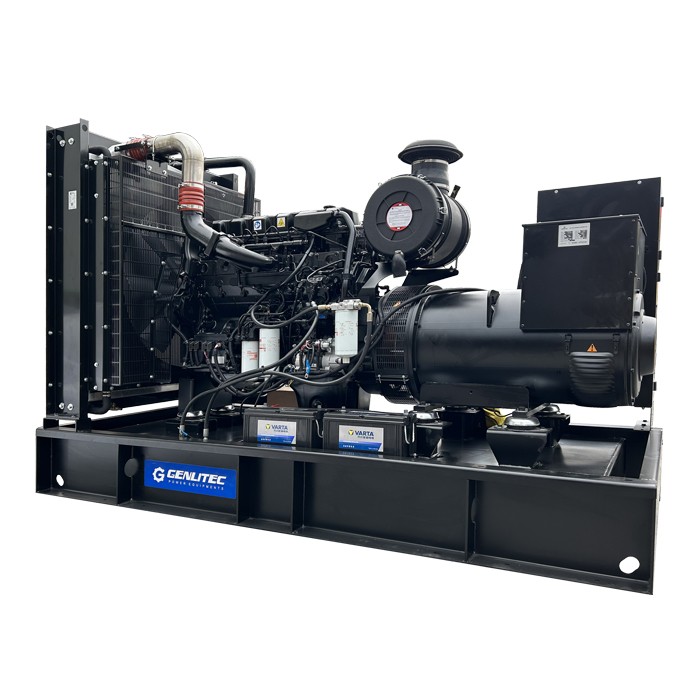

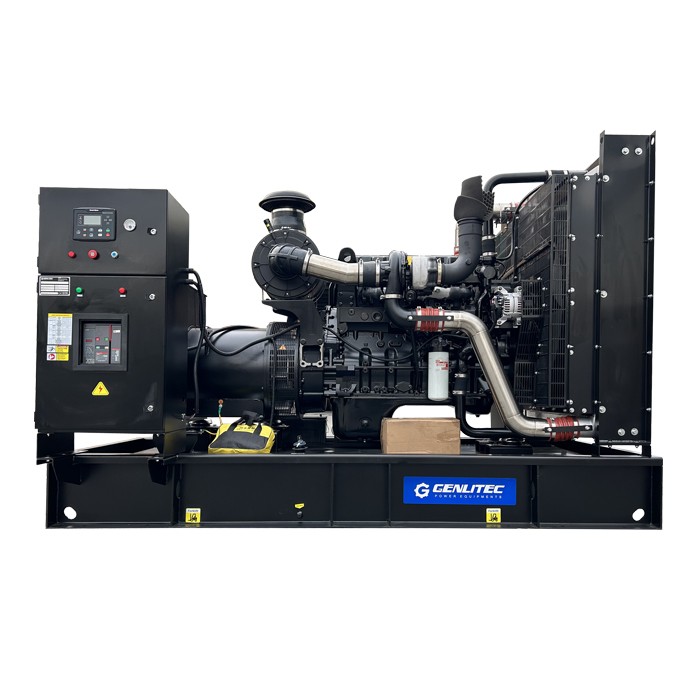

● GENLITEC POWER® STANDBY 520KW/650KVA DIESEL GENERATOR SET FEATURES

○ Brand new original QSK19-G4 brand water cooled diesel engine

○ Original single bearing 100% copper brushless alternator

○ Rating 220/380V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system

● GENERATOR SET

Open Type Model	GPC650D5
Silent Type Model	GPC650S5
Prime Power	520KW/650KVA
Standby Power	570KW/712KVA
Phase & Wires	3 Phase, 4 Wires
Power Factor	0.8
Frequency	50Hz
Rated Voltage	220/380V, 230/400V, 240/415V
Fuel Tank Capacity	1000L

● DIESEL ENGINE

Engine Model	QSK19-G4
Cylinder Number	6
Aspiration System	Turbo Charged, Charge Air Cooled
Cooling Method	Water Cooled
Governor Type	Electronic
Bore x Stroke	159 x 159 mm
Compression Ratio	15:1
Rated Speed	1500 RPM
Displacement	19L
Rated Power	574KW
Standby Power	634KW
Coolant Capacity	41.6L (Engine Only)
Oil Capacity	84L
Fuel System	CUMMINS Direct Injection MCRS
Electric Starting System	DC 24V

● FUEL CONSUMPTION

100% Prime Load	145L/ph
75% Prime Load	111L/ph
50% Prime Load	79L/ph
25% Prime Load	41L/ph

● ALTERNATOR

Number of Phase	3
Rated Power	520KW/650KVA
Frequency	50Hz
Power Factor	0.8
Poles	4
Temp. Rise	125K
Terminals	12
Insulation Class	H
Ambient Temp.	40℃
IP Rating	IP23
Excitation System	Self-Excited
Bearing	Single Bearing
Coating	Vacuum Impregnation
Voltage Regulator	A.V.R
Coupling	Flexible Disc

● CONTROL PANEL

○ Emergency stop button

○ Main circuit breaker

○ Float baterry charger

○ Manual/Autostart control panel

○ Fuel level meter

○ Controller power switch

○ Alarm buzzer

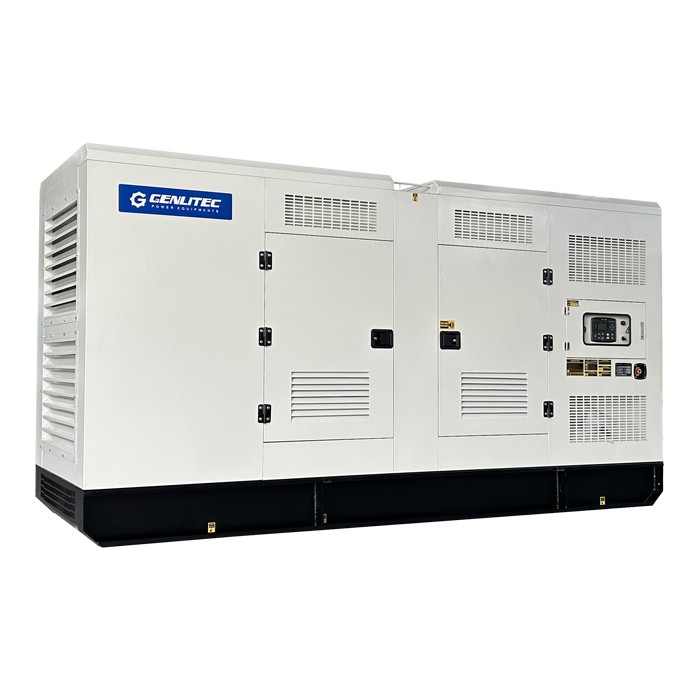

● SOUND ATTENUATED ENCLOSURE

○ Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

○ Highly Corrosion Resistant Construction

● WARRANTY

○ 12 months or 1000 working hours, whichever comes first

● OPTIONS

○ ATS Panel (for automatic start & stop when electricity power off & on)

○ Heater

○ 12 hours fuel tank

○ 24 hours fuel tank

○ Power Sockets (CEE or AUS standard)

○ Remote & Mornitoring System (4G or Wifi)

○ Sychronization Panel
