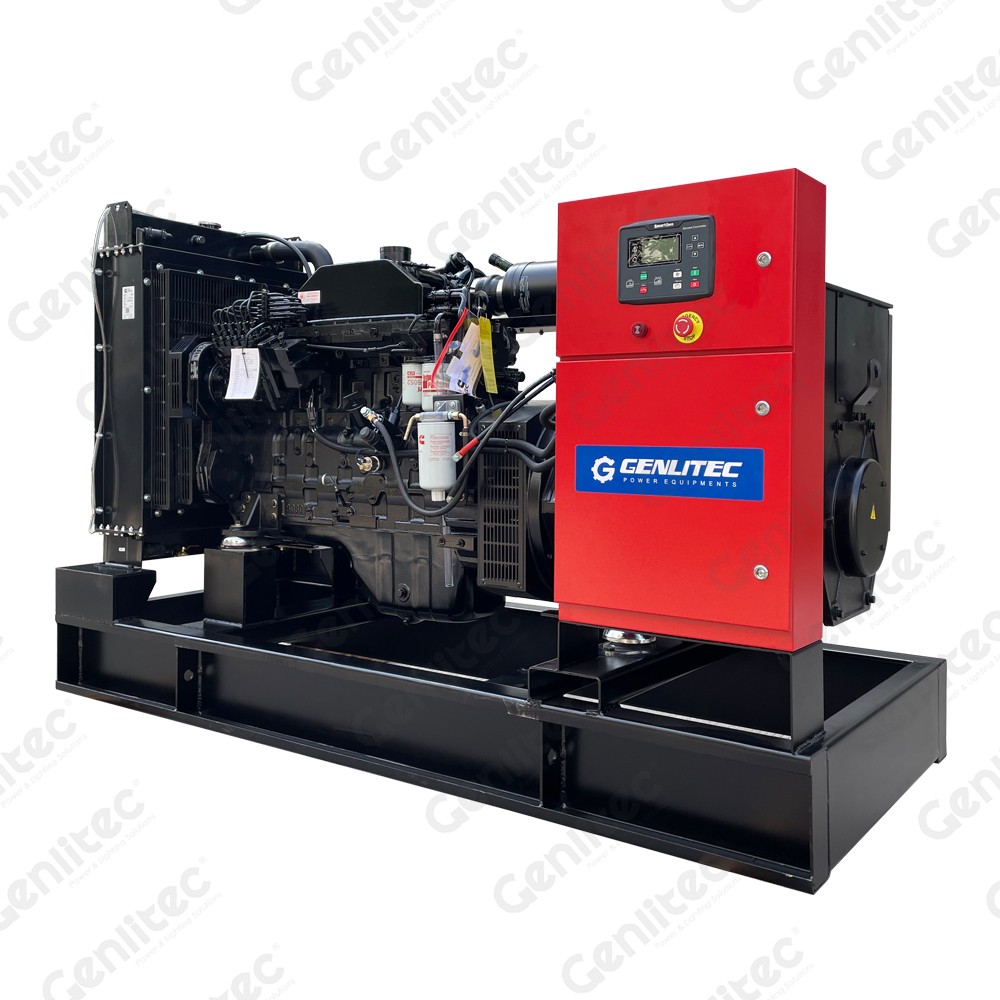

30KVA Cummins Diesel Generator-60Hz

30KVA Cummins Diesel Generator-60Hz
  • 30KVA Cummins Diesel Generator-60Hz
  • 30KVA Cummins Diesel Generator-60Hz
  • 30KVA Cummins Diesel Generator-60Hz
  • 30KVA Cummins Diesel Generator-60Hz
  • 30KVA Cummins Diesel Generator-60Hz

Short Description:

GENLITEC POWER® GPC30D6 (open type), GPC30S6 (silent type) diesel generator set powered by original CUMMINS diesel engine 4B3.9-G2, with prime power 24KW/30KVA and standby power 26.4KW/33KVA....


  • Open Type Model: GPC30D6
  • Silent Type Model: GPC30S6
  • Engine: CUMMINS 4B3.9-G2
  • Prime Power: 24KW/30KVA
  • Standby Power: 26.4KW/33KVA

Product Details

Product Tags

Product Video



GENLITEC POWER® 24KW/30KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS 4B3.9-G2 brand water cooled diesel engine

STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 190~480V, 3-Phase, 60Hz, 1800RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

Open Type Model GPC30D6
Silent Type Model GPC30S6
Prime Power 24KW/30KVA
Standby Power 26.4KW/33KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Frequency 60Hz
Rated Voltage 110/190V; 120/208V; 127/220V; 254/440V; 277/480V
Fuel Tank Capacity 50L

● DIESEL ENGINE


Engine Model CUMMINS 4B3.9-G2
Cylinder Number 4
Aspiration System Naturally
Cooling Method Water Cooled
Governor Type Electronic
Bore x Stroke 102 x 120 mm
Compression Ratio 17.5:1
Rated Speed 1800RPM
Displacement 3.9
Rated Power 30KW
Standby Power 33KW
Fuel System BYC A-Type
Oil Capacity 11L
Coolant Capacity 21L
Electric Starting System DC 24V

● FUEL CONSUMPTION

100% Prime Load 7.1L/H
75% Prime Load 5.7L/H
50% Prime Load 4.3L/H
25% Prime Load 2.8L/H

ALTERNATOR


Number of Phase 3
Rated Power 25KW/31.25KVA
Frequency 60Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 12
Insulation Class H
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

CONTROL PANEL


Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer


● GENLITEC POWER® A-TYPE SOUND ATTENUATED ENCLOSURE


Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first

OPTIONS

ATS (for automatic start & stop when electricity power off & on)

Single axle trailer

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)
