250KVA Cummins (6LTAA8.9-G2) Diesel Generator-50Hz

250KVA Cummins (6LTAA8.9-G2) Diesel Generator-50Hz
  • 250KVA Cummins (6LTAA8.9-G2) Diesel Generator-50Hz
  • 250KVA Cummins (6LTAA8.9-G2) Diesel Generator-50Hz
  • 250KVA Cummins (6LTAA8.9-G2) Diesel Generator-50Hz
  • 250KVA Cummins (6LTAA8.9-G2) Diesel Generator-50Hz
  • 250KVA Cummins (6LTAA8.9-G2) Diesel Generator-50Hz

Short Description:

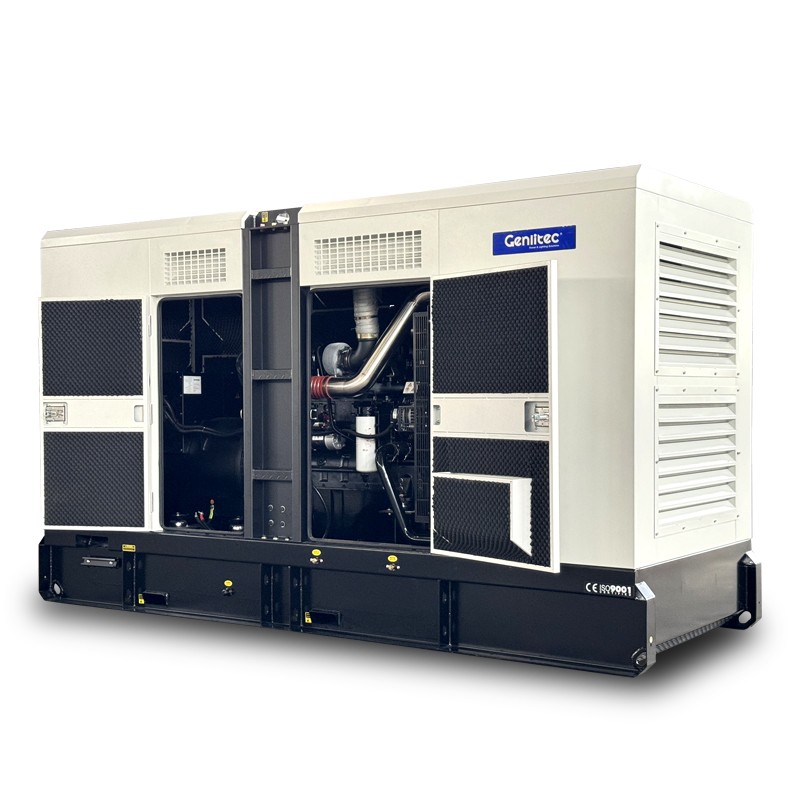

GENLITEC POWER® GPC250D5-I (open type), GPC250S5-I (silent type) diesel gensets powered by original CUMMINS diesel engine 6LTAA8.9-G2, with prime power 200KW/250KVA and standby power 220KW/275KVA....


  • Model: GPC250D5-I | GPC250S5-I
  • Engine: CUMMINS 6LTAA8.9-G2
  • Prime Power: 200KW/250KVA
  • Standby Power: 220KW/275KVA
  • Voltage: 220/380V | 230/400V | 240/415V

Product Details

Product Tags

Product Video

GENLITEC POWER® 200KW/250KVA CUMMINS DIESEL GENERATOR SET FEATURES

○ Brand new original CUMMINS 6LTAA8.9-G2 brand water cooled diesel engine

○ Original STAMFORD, LEROY SOMER or GENLITEC POWER® single bearing 100% copper brushless alternator

○ Rating 220/380V, 3-Phase 4-Wires, 50Hz, 1500RPM, 0.8PF, IP23, H insulation class

○ 50℃ radiator with engine driven fan mounted on the based frame

○ Set mounted control panel equipped with DEEPSEA, COMAP, DEIF or SMARTGEN digital controller

○ Original ABB, DELIXI or CHINT brand MCCB type main circuit breaker

○ Diesel engine and alternator mounted on a based frame with anti-vibration mountings

○ 24V DC electric start system with free-maintenance lead-acid battery and float battery charger

○ Industrial silencers with blexible connects and elbow

○ Complete engine alarm system


● GENERATOR SET

Open Type Model GPC250D5-I
Silent Type Model GPC250S5-I
Prime Power 200KW/250KVA
Standby Power 220KW/275KVA
Phase & Wire 3 Phase, 4 Wires
Power Factor 0.8
Frequency 50Hz
Rated Voltage 220/380V, 230/400V, 240/415V

● DIESEL ENGINE


Model CUMMINS 6LTAA8.9-G2
Cylinder Number 6
Aspiration System Turbocharged, Air to Air Cooled
Cooling Method Water Cooled
Governor Type Electronic
Bore x Stroke 114 x 145 mm
Compression Ratio 15:1
Rated Speed 1500 RPM
Displacement 8.9L
Rated Power 220KW
Standby Power 240KW
Fuel System P7100 Pump
Coolant Capacity 11.1L (Engine Only)
Oil Capacity 27.6L
Electric Starting System DC 24V

● FUEL CONSUMPTION

100% Prime Power 53L/H
75% Prime Power 39L/H
50% Prime Power 27L/H
25% Prime Power 15L/H

ALTERNATOR


Number of Phase 3
Rated Power 200KW/250KVA
Frequency 50Hz
Power Factor 0.8
Poles 4
Temp. Rise 125K
Terminals 12
Insulation Class H Class
Ambient Temp. 40℃
IP Rating IP23
Excitation System Self-Excited
Bearing Single Bearing
Coating Vacuum Impregnation
Voltage Regulator A.V.R
Coupling Flexible Disc

CONTROL PANEL


Emergency stop button

Main circuit breaker

Float baterry charger

Manual/Autostart control panel

Fuel level meter

Controller power switch

Alarm buzzer


● GENLITEC POWER A-TYPE SOUND ATTENUATED ENCLOSURE


Fully Weatherproof Sound Attenuated Enclosure With Internal Exhaust Silencer

Highly Corrosion Resistant Construction


WARRANTY

12 months or 1000 working hours, whichever comes first


OPTIONS

ATS (for automatic start & stop when electricity power off & on)

Single axle trailer

12 hours fuel tank

24 hours fuel tank

Power Sockets (CEE or AUS standard)
